| Capacity |
1000N |
| Resolution |
1N |
| Accuracy |
+/-0.5% F.S +/-1digit |
| Unit |
N, kgf ,lbf (*1) |
| Sampling rate |
2000Hz |
| Safe overload rating |
Approx. 150% F.S. |
| Overload warning |
110% or less |
| Measuring speed0 |
10/25/50/100 mm/min(Choose from 4 steps) |
25/50/100/300 mm/min(Choose from 4 step) |
| Stroke |
Approx.50mm |
| Allowable sample diameter |
Terminal side: Slit width 1~8mm (*2) |
| Harness side: Aperture width 1~8mm (*2) |
| Allowable sample length |
100mm or more |
| Mode |
BREAK/KEEP mode |
| Number of registered test condition |
26 patterns(A~Z) |
| Output |
USB/RS232C/pass or fail decision signal (OK/NG) |
| Security lock |
Emergency stop button and Overload prevention (at the power on) |
| Power supply |
AC100~240V |
| Weight |
Approx.11kg |

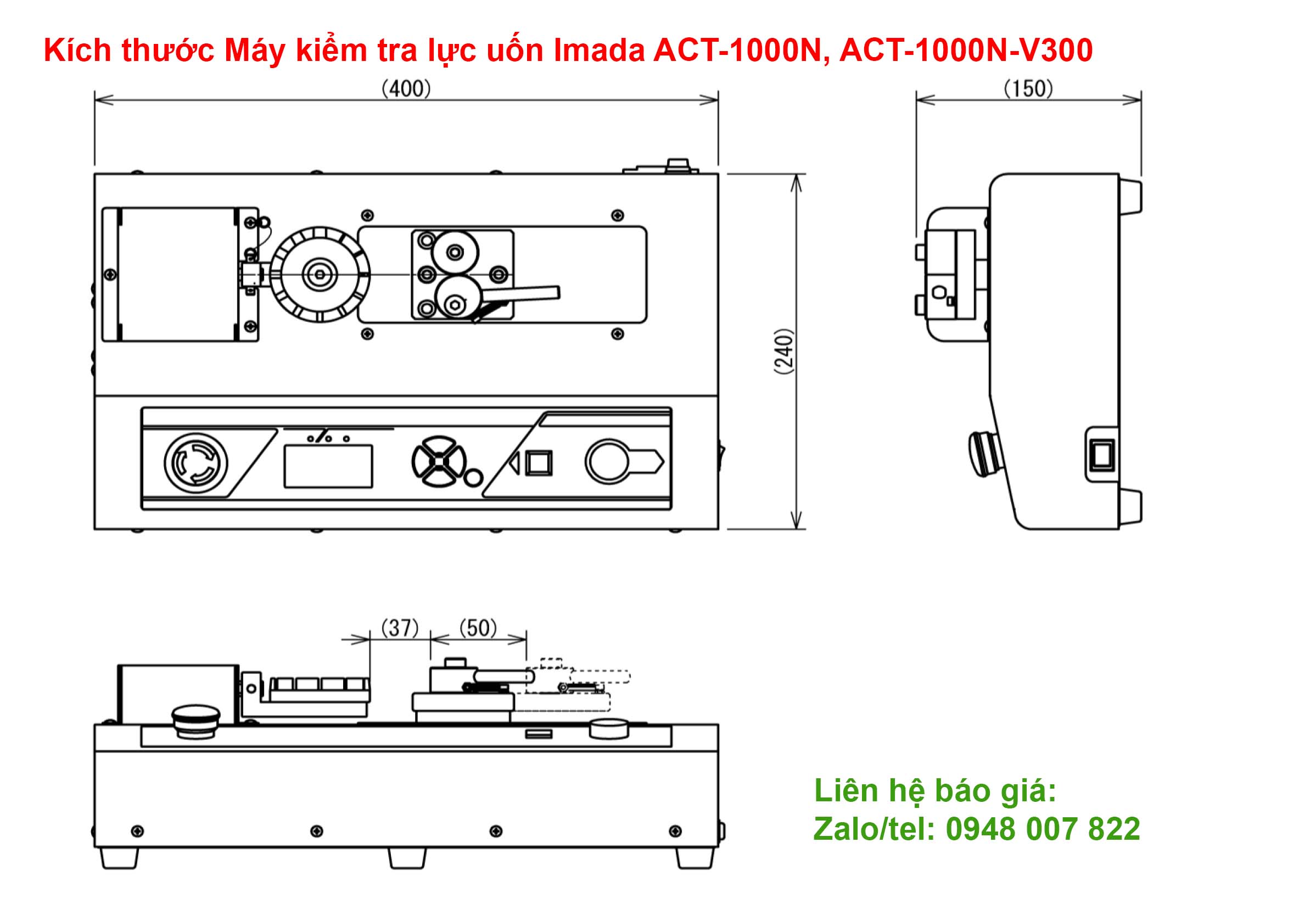

| Size |
W400*D240*H150 |
| Operating environment |
Temperature :0~40 degree Celsius Humidity:20~80%RH |
| Conformance Testing |
-UL 486A-486B(2013) “ Standard for Safety for Wire Connectors, 9.3.4 Pullout test”-IEC 60512-16-4(2008)
” Connectors for electronic equipment – Tests and measurements-
Part 16-4: Mechanical tests on contacts and terminations – Test 16d: Tensile strength (crimped connections)”-JIS C2805(2010) “Crimp-type terminal lugs for copper conductors.” |
| Accessory |
Software, USB cable, Power cord, Inspection Certificate
|
