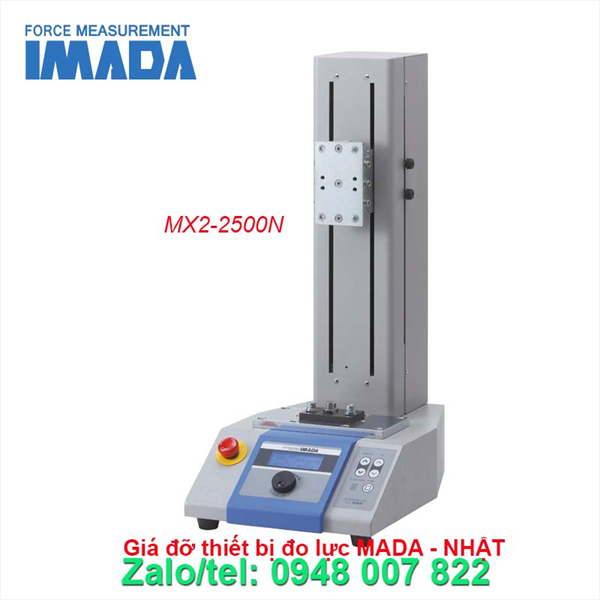

Máy thử kéo nén MX2 series Imada

Mã sản phẩm: MX2 series |
Thương hiệu: Imada

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Máy thử kéo nén
Model: MX2 series
Hãng: Imada
Thông tin sản phẩm
Model MX2-500N MX2-1000N MX2-2500N
Capacity 500N (50kgf) 1000N (100kgf) 2500N (250kgf)

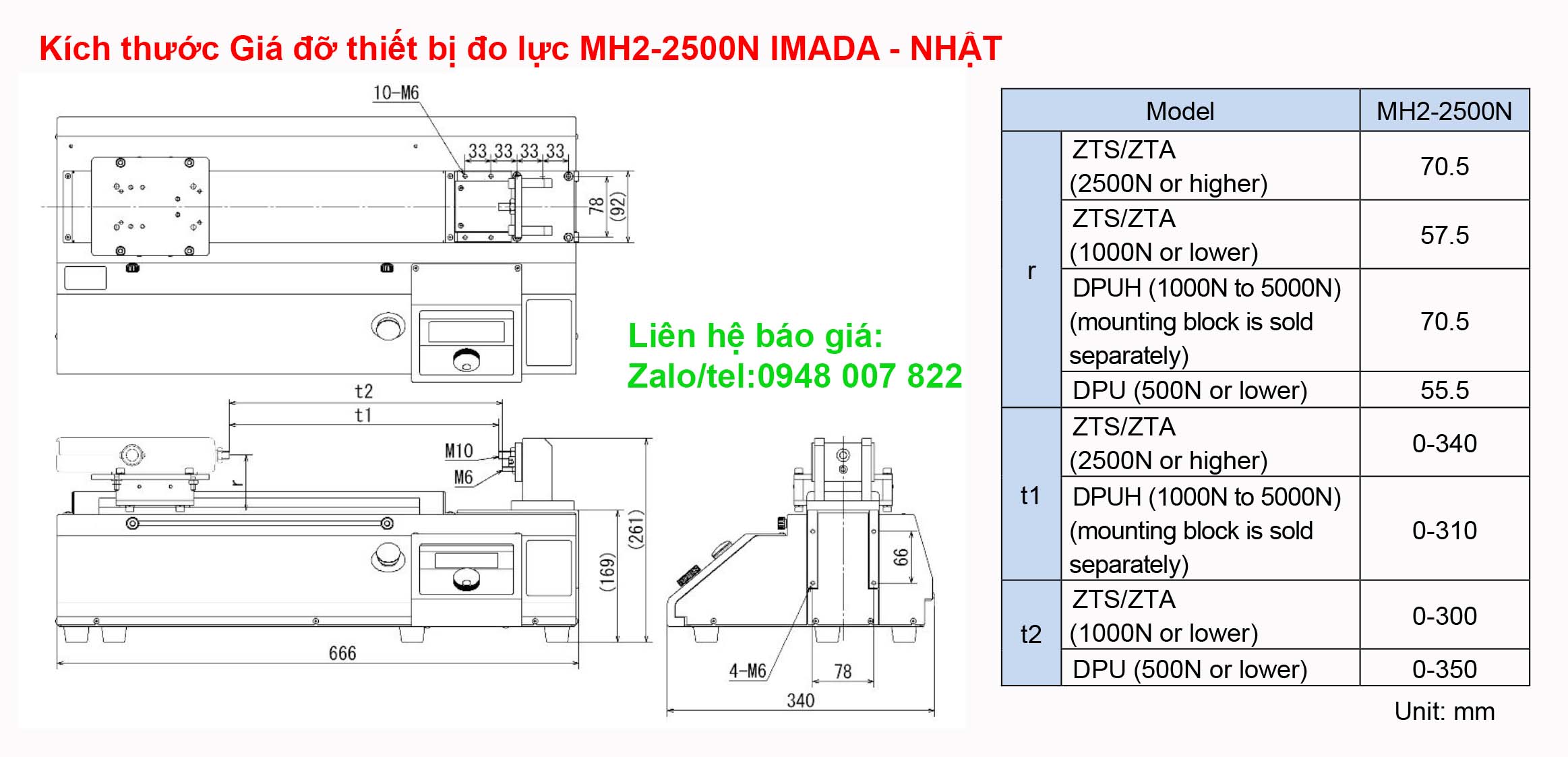

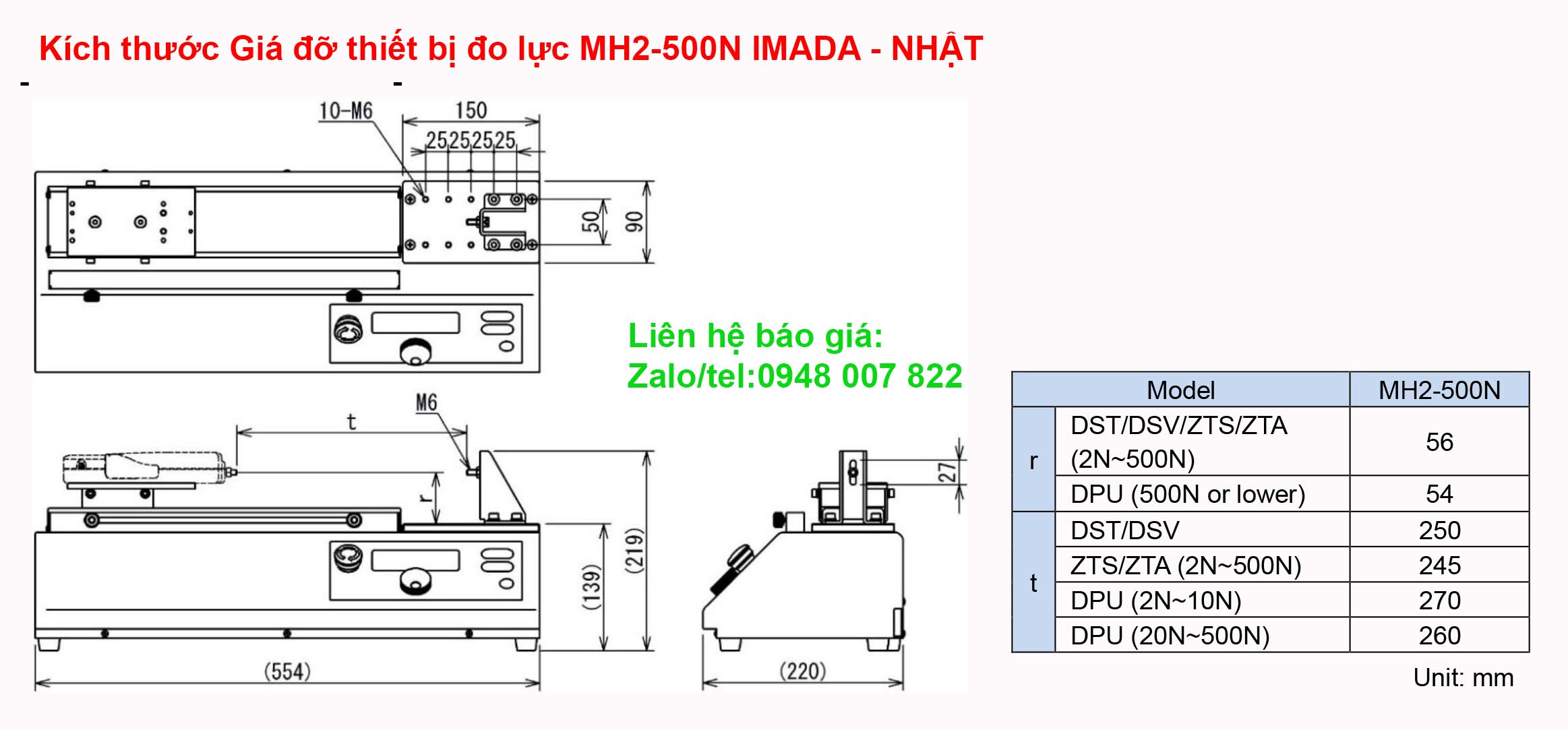

Maximum height of a sample Please refer to “t” of Dimensions below.
Deflection at maximum load Less than 0.5mm
Test speed 10-300mm/min
Gauges that can be combined (*1) Force gauges and DPU series load cells (up to 500N)except High capacity model Force gauges, DPU series load cells (*2) Force gauges, DPU series load cells(up to 500N) (*2)
Function Manual mode, JOG mode, Cycle mode
Digital setting of speed, counter, timer
Control Emergency button,Motion control by force(*3), Overload prevention(*3)(*4)
Safety devices Stroke limit, emergency stop button
Power AC100V-240V, free input
Size Please refer to dimensions
Weight Approx.18kg Approx.19kg Approx.26 kg
Option Long stroke, Speed range change, Linear scale, Length meter, I/O connector type2
Accessory Grip Mounting Adapter(GF-1) Grip Mounting Adapter(GF-2)High capacity model gauge mounting plate Grip Mounting Adapter(GF-2), A small type force gauge mounting plate(MX2-2PK)、
Manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools.
