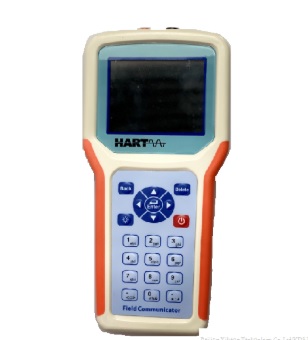

Thiết bị hiệu chuẩn, giao tiếp KDS D-HART130 HART Communicator

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị hiệu chuẩn, giao tiếp KDS D-HART130 HART Communicator

Thông tin sản phẩm

Thiết bị hiệu chuẩn, giao tiếp KDS D-HART130 HART Communicator


Technical index

l  HART @ interface conforms to the agreement of HCF (HART⑧communication foundation), and works in 1200bit/s two-way semi-duplex mode.

l The common mode voltage that the HART @ interface can receive is ±40V;

l  The typical value of leakage current is less than 1uA@20 ℃.

l  Communication distance of HART interface < 1500m;

l  HART @ communication interface has anti-EMC measures;

l  HART @ communication interface has automatic amplitude multiplication function.

General technical specifications

l  Size: 165×80×32mm (excluding the leather case).

l  Operating environment: temperature 0℃ ~ 50℃

Types of transmitters supported

HK-H3151、HK-H1151、HK-H990-CT1、HK-H610、YOKOKAWA、 EJA、Rosemount 1151、Rosemount 3051、HK-H990M(HART general pressure transmitter round card)、HK-H991M(general pressure transmitter board card)、HK-H3351M(Huakong 3351 pressure transmitter round card)、、SIPART_PS2(SIMENS valve positioner)、 SITRANS_FM_MAG(SIMENS mass flowmeter)、SITRANS_TH300(SIMENS thermometer)
