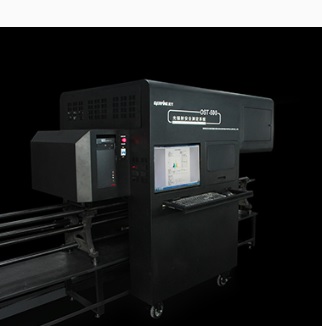

Thiết bị kiểm tra bức xạ ánh sáng EVERFINE OST-500 OPTICAL RADIANTION TEST SYSTEM

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị kiểm tra bức xạ ánh sáng EVERFINE OST-500 OPTICAL RADIANTION TEST SYSTEM

Thông tin sản phẩm

Thiết bị kiểm tra bức xạ ánh sáng EVERFINE OST-500 OPTICAL RADIANTION TEST SYSTEM


1.measurement wavelength range: 200nm~3000nm

2. Wavelength accuracy: ±0.1nm (maximum)

3. Radiance measurement geometry: Accord with CIE/IEC pupil simulation condition.

4. Imaging radiometer: 16 bit scientific grade refrigeration CCD, over one million pixels.

5. Measuring field of view: 100mrd/11mrd/1.7mrd or any other field of view, meeting the requirements of CIE/IEC standard.

6. The maximum weight of the sample: 50kg

       7.Maximum size of the sample: 1.5m

8. Automatically identify and position the maximum accessible optical emission

9. Adopting patent technologies, it features high accuracy, hign reliability and full automatically.

10. The value can be traced back to the National Standards Institute of Technology (NIST) or the Metrology Institute of China (NIM).

11.Pulse lamp test: Composed of high precision and fast spectrum radiometer, special software, and can be used to measure pulse light with the conventional photo biological safety testing system. (optional)
