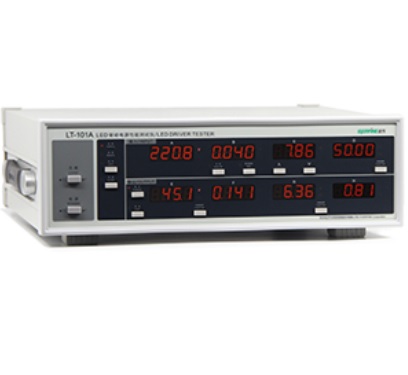

Thiết bị kiểm tra đèn LED EVERFINE LT-101A LED Driver Tester

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị kiểm tra đèn LED EVERFINE LT-101A LED Driver Tester

Thông tin sản phẩm

Thiết bị kiểm tra đèn LED EVERFINE LT-101A LED Driver Tester



Input characteristics test

Measurement function

Measure voltage RMS,current RMS,active power,power factor,frequency,voltage & current total harmonic distortion,true RMS and relative value of 0~50th harmonics.

Selection of input current bandwidth

narrowband (20Hz ~ 5kHz), wideband (20Hz ~ 1MHz)

Harmonic analysis function

THD and 2nd~50th harmonics

Input characteristic measurement range

Voltage

3V~300V

Current

0.010A~5.000A

Frequency

DC,20Hz~65Hz

Bandwidth

Narrow band is 5 kHzwide band is 1MHz

Accuracy

±(0.1F.S.0.1R.D.)

Output characteristics test

Output steady state characteristic test

RMS voltage, oscillation frequency,  RMS current, active power and power factor

Output start characteristic test

 peak voltage, peak current and peak current time from 0~ 3s during measurement output start

Measurement range of output characteristics

Voltage

3V~300V

Current

0.010A~5.000A

Frequency

DC,20Hz~65Hz

Frequency width

narrow band 5kHz,broad band 1MHz

Accuracy

±(0.1F.S.0.1R.D.)

Communication

RS-232



Other information

Holding function and PC software

Current ripple test function (for reference)
