Thiết bị Micromanipulator P300A Semi-Automatic Probe Station

Thông tin sản phẩm

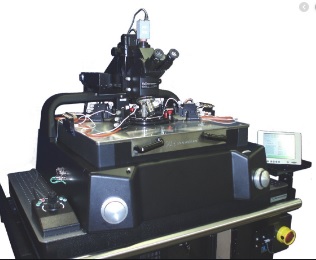

Thiết bị Micromanipulator P300A Semi-Automatic Probe Station



The Micromanipulator P300A 300mm semiautomatic probe station is the most stable, intuitive, and space efficient 300mm semi-automatic analytical probe station available today. Designed for low current, sub-micron positioning applications, the P300A comes standard with features such as single-point ground, dry/dark environment, and integrated thermal chuck plumbing. Built for reliability as well as precision, the P300A features closed-loop operation with massive stage and platen drives, a robust chuck mount and a harmonic theta drive.

The P300A uses NetProbe 7 software, Micromanipulator’s revolutionary prober control software. Navigator, Inter-active Video, Memory List, Wafer Map, EdgeSense pattern recognition, and Setup modules provide full functionality with a wealth of high level features including Video Positioning and Snap Alignment, Die to Die and In-Die stepping. Motorized controls placed conveniently at the front of the station allow simple manual control of this semi-automatic station when programmability is not required.

Both joystick and MicroTouchTM controls intuitively operate the station stage, platen (Z), and theta as well as the microscope X-Y and Z drives. A local touch-screen display also provides setup and operational programmability locally to the probe station hardware. Drivers from popular tester companies including Keysight, Keithley, and LabVIEW
