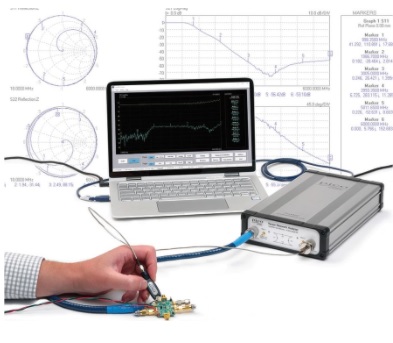

Thiết bị phân tích vector network analyzer Pico VNA 106

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị phân tích vector network analyzer Pico VNA 106

Thông tin sản phẩm

Thiết bị phân tích vector network analyzer Pico VNA 106


VNA 106 6GHz vector network analyzer

  • 300 kHz to 6 GHz operation
  • High speed of > 5000 dual-port s-parameters per second
  • 'Quad RX' four-receiver architecture for optimal accuracy
  • 118 dB dynamic range at 10 Hz bandwidth
  • 0.005 dB RMS trace noise at bandwidth of 140 kHz
  • Compact half-rack, lightweight package
  • 3 year warranty
  • PC-controlled over USB using Windows software
  • Reference plane offsetting and de-embedding
  • Time domain and port impedance transformations
  • Tabular and graphic print and save formats, including Touchstone
  • P1dB, AM to PM, and stand-alone signal generator utilities
  • Fully accessible guided 8 and 12-term calibration processes
  • 6 calibration modes, including unknown thru and connected DUT isolation
