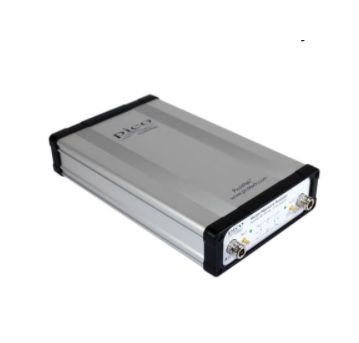

Thiết bị phân tích vector network analyzer Pico VNA 108

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị phân tích vector network analyzer Pico VNA 108

Thông tin sản phẩm

Thiết bị phân tích vector network analyzer Pico VNA 108


VNA 108 8.5 GHz vector network analyzer

  • 8.5 GHz vector network analyzer
  • High speed of up to 5500 dual-port S-parameters per second
  • Over 10000 S11 + S21 per second
  • Quad RX four-receiver architecture for optimal accuracy
  • Up to 124 dB dynamic range at 10 Hz bandwidth
  • 0.005 dB RMS trace noise at maximum bandwidth of 140 kHz
  • Half-rack, small-footprint, lightweight package
  • PC-controlled over USB from a Microsoft Windows interface
  • Reference plane offsetting and de-embedding
  • Time-domain and port impedance transformations
  • Tabular and graphic print and save formats, including Touchstone
  • Save on trigger for high-speed device profiling (PicoVNA 108)
  • Dual-frequency mixer measurements with VSWR correction (PicoVNA 108)
  • P1dB, AM to PM, and standalone signal generator utilities
  • Guided 8- and 12-term and absolute power calibration processes
  • 6 calibration modes, including unknown through and connected DUT isolation
