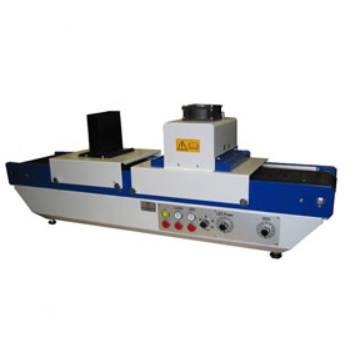

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI DUO

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI DUO


Compact, air cooled UV table unit with curing combination UV-LED and UV tube. The UV light emitting diodes (LED) and the experienced UV tube an be used for the curing of special UV inks, UV varnishes and UV adhesives for a broad range of small format. Ideal for tests, R & D or occasional small production runs on flat or moulded parts. Ready to use solution (plug and play), inclusive belt suction.

Technical data:

UV LED wave length 395 nm (other wave lengths on request)
UV LED power 16 W/cm², infinitely variable
UV LED curing width 8 cm
UV tube 10 cm, Hg (ozone free tube and special spectra on request)
Power of UV tube max. 120 W/cm, variable power adjustment from 30% to 100%
Conveyor belt speed 3-20 m/min. (other conveyor belt speeds on request), variable
Conveyor belt Teflon coated, endless, glass fibre conveyor belt, black, antistatic
Conveyor belt width 17 cm
Pass through width approx. 22 cm
Tunnel height Adjustable in steps up to approx. 50 mm
