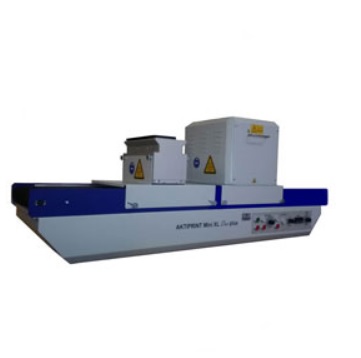

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO


Compact, air cooled UV table top unit with curing combination UV LED and UV tube. The UV light emitting diodes (LED) and the experienced UV tube can be used for the curing of special UV inks, UV varnishes and UV adhesives for a broad range of small format. Ideal for tests, R & D or occasional small production runs of small size flat material and moulded parts.

Technical data:

UV LED wave length 395 nm (other wave lengths on request)
UV LED power 16 W/cm², infinitely variable (other powers on request)
UV LED curing width 16 cm
UV tube 20 cm, Hg (ozone free tube and special spectra on request)
Max. curing width UV tube 20 cm
UV power max. 120 W/cm, variable power adjustment from 30-100%
Conveyor belt speed 3-20 m/min. (other speeds on request), variable
Conveyor belt Teflon coated, endless, glass fibre conveyor belt, black, antistatic
Conveyor belt width 25 cm
Pass through width approx. 30 cm
Tunnel height adjustable in steps up to approx. 50 mm
