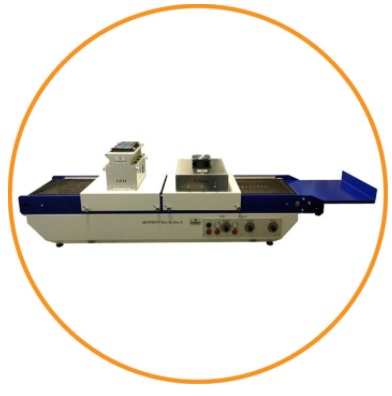

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO X

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO X

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT MINI XL DUO X

Compact, air-cooled UV table unit with curing combination UV LED and c cure. This innovative belt dryer is ozone free, energy saving and most suitable for laboratory use and productions.

Through the combination of long wave UV LED and short wave UVC curing you will get very good results regarding to the hardening of surface and depth hardening by low energy consumption and low load of heat.

This combination dryer is ideal useful for curing and hardening special UV inks, UV varnishes and UV adhesives of small printing sizes.

Technical data:

UV LED wave length 395 nm (other wave lengths on request)
UV LED power 16 W/cm², infinitely variable (other powers on request)
UV LED curing width 16 cm
Max. curing width c cure 25 cm
Power / wave length c cure 3 x 60 W / 254 nm
Conveyor belt speed 3-20 m/min. (other speeds on request), variable
Conveyor belt Teflon coated, glass fibre conveyor belt, endless, black, anstistatic
