Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT SK

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT SK

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF AKTIPRINT SK

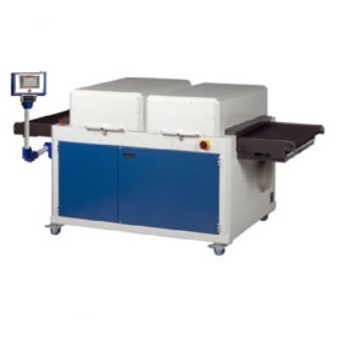

Universal UV Dryer as stationary unit with conveyor belt to dry all kind of UV sensitive coatings for medium and large size prints on all conventional materials like paper, cardboard, metal, plastic, glass and wood with usual permissible thermal load. This model is equipped with an additional recirculated air cooling zone for heat sensitive materials. Special sizes and customized versions on request.

Technical data:

Power of UV tube Each UV tube max. 120 W/cm, units 140+150 cm: max. 100 W/cm,
units 160 cm and larger: max. 80 W/cm
UV spectrum 200 – 400 nm (ozone free tubes or special spectra on request)
Standard version Ready to use, stable unit with air cooling; massive, focusing aluminium half
reflectors; easy replaceable facetted aluminium mirrors; current indicator; digital
speed indicator; tubes on/off individually; counter for operating hours; belt suction,
ozone exhaust; report of errors; protection grids on both sides of tube housing;
cooling zone with additional fan.
Features Inclusive SPS control and touch panel; variable power adjustment from 30% to
100% and stabilization (electronic power supply); intensive air cooling with
temperature thermostat.
Conveyor belt speed 5-35 m/min., variable (other conveyor belt speeds on request)
