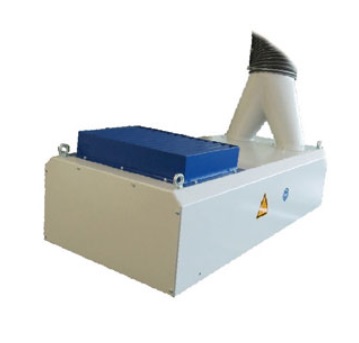

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV BRIDGE MODULE

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV BRIDGE MODULE


The air-cooled UV bridges, preferably with 2 tubes, are suitable to cure and harden UV sensitive inks, UV varnishes, UV adhesives and coatings. These modules are provided for the assembly over the conveyor belt at the inlet or outlet of an existing hot-air dryer in screen printing application. An additional suction might be necessary to keep print goods from floating. Customized versions on request.

Technical data:

Power of UV tube Each UV tube max. 120 W/cm, units 140 + 150 cm max. 100 W/cm,
units 160 cm and larger: 80 W/cm
UV spectrum 200 – 400 nm (ozone free tubes or special spectra on request)
Standard version Ready to use UV module with 1 or 2 UV tube(s), Hg, with separate power supply.Massive, focused aluminium half reflectors. Easy replaceable facetted aluminium mirrors. Light protection permeable to air. Control and interference signals for UV unit and printing machine. Inclusive quartz glass panes. Strong suction fan, ozone and heat exhaust.
Features Variable power adjustment from 30% to 100% and stabilization with electronic power supply. Radiation protections (size customizable).
