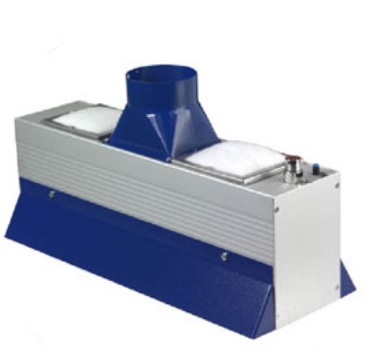

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV COMPACT MODULE

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV COMPACT MODULE

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV COMPACT MODULE



Power of UV tube max. 120 W/cm
UV spectrum 200 – 400 nm (ozone free tube or other special spectrum on request)
Standard version Ready to use UV module with 1 tube, Hg, and separate power supply. Massive, focused aluminium half reflectors. Easy replaceable facetted aluminium mirrors. Inclusive quartz glass panes. Strong external suction fan, ozone and heat exhaust.
Features Variable power adjustment from 30% to 100% and stabilization with electronic
power supply. High UV curing power. Low temperature load on printing material. Easy to replace tube at reflector. Control and interference signals to UV unit and printing machine „tube ON/OFF, power adjustment 30-100%, signal for ready status“ (reflector shutter as option).
Colour Module: silver anodized, E 6/EV 1 / Power supply (control panel): RAL 5002, blue
Manual instruction German or English
Note Installation of waste air, power supply and electrical fusing are up to the customer.
