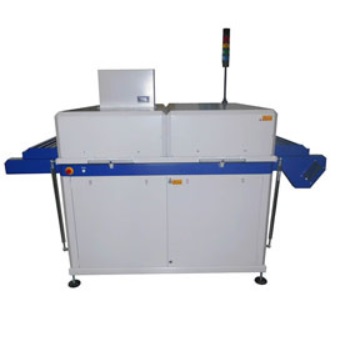

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV DRYER FOR FLAT GLASS

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV DRYER FOR FLAT GLASS

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV DRYER FOR FLAT GLASS

Robust industrial dryer for flat glass with one and/or two sided hardening and curing of UV sensitive inks on medium to large format glass of different thickness with usual permissible thermal load. Industrial version. Special sizes and customized versions on request.

Technical data:

Power of UV tube Each UV tube max. 120 W/cm
UV spectrum 200 – 400 nm (ozone free tubes or special spectra on request)
Standard version Ready to use, stable unit with air cooling: transport system synchronised with pinch rolls; massive, focused aluminium half reflectors; easy replaceable facetted aluminium mirrors; intensive air cooling controlled with thermostat; a separate control desk will be necessary by higher power; current indicator; digital speed indicator; operating hours counter; exchangeable reflector cassette.
Features Inclusive SPS control and touch panel. Variable power adjustment from 30% to 100% and stabilization (electronic power supply).
Speed 3-15 m/min., variable (other conveyor belt speeds on request)
