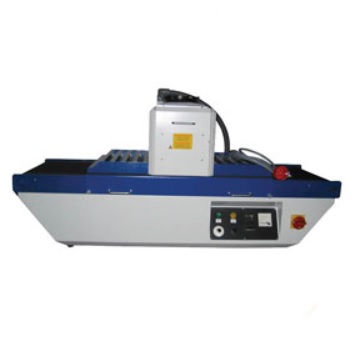

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV TABLETOP DRYER

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV TABLETOP DRYER

Thông tin sản phẩm

Thiết bị sấy bằng tia cực tím UV TECHNIGRAF UV TABLETOP DRYER

Technical data:

Power of UV tube T/e 28: max. 160 W/cm, T/e 40: max. 140 W/cm, T/e 50: max. 120 W/cm
UV spectrum 200 – 400 nm (ozone free tubes or special spectra on request)
Standard version Ready to use, compact table top unit with air cooling; 1 or 2 UV tube(s); massive,
focusing aluminium half reflectors; easy replaceable facetted aluminium mirrors;
inclusive quartz glass panes; counter for operating hours; digital current indicator;
operating desk integrated; tubes on/off individually; protection grids on both sides
of tube housing.
Feature Variable power adjustment from 30% to 100% and stabilization with electronic
power supply.
Conveyor belt speed 5-20 m/min., variable (other conveyor belt speeds on request)
Conveyor belt PTFE, black, antistatic, with manual adjustment
Conveyor belt width T/e 28: 30 cm, T/e 40: 42 cm, T/e 50: 52 cm
Max. pass through width T/e 28: 38 cm, T/e 40: 48 cm, T/e 50: 58 cm
Max. curing width T/e 28: 30 cm, T/e 40: 40 cm, T/e 50: 50 cm
