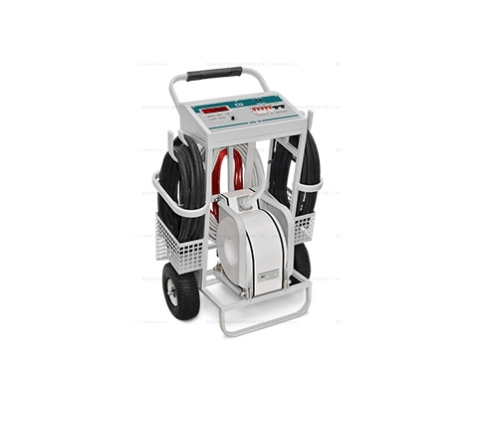

Thiết bị tạo dòng sơ cấp UPA-20 KEP

Mã sản phẩm: UPA-20 |
Thương hiệu: KEP

Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Thiết bị tạo dòng sơ cấp
Model: UPA-20
Hãng: KEP
Thông tin sản phẩm

- Automatic circuit breaker tester UPA-20 is designed for testing and ampere-second characterization of automatic AC current circuit breakers. The device allows registering the value of the supplied current and timing the automatic circuit breaker switching interval.

- UPA-20 is a mobile device, which could be easily transported to a required testing location.
- UPA-20 operates on the principle of varying the power in the primary circuit of the matching power transformer and, respectively, varying the output current, flowing through the automatic circuit breaker under the test. Power regulation could be done either through an external regulator (RNO or VR) or through a built-in thyristor controller.

Thông số kỹ thuật

    • Condition Value
      Air temperature, °С from -35 to +35
      Relative humidity, %, up to
      80 at +20° С
      Atmospheric pressure, kPa (mm hg)
      84,0 – 106,7 (630 – 800)
    Characteristic Value
    AC power supply voltage, V
    220±22 or 380±38
    Power supply frequency, Hz
    50±1
    Maximum output current when powered from 220 V circuit, kA 14
    Maximum output current when powered from 380 V circuit, kA
    20
    Test current measurement range, kA 3...20
    Range of measurements of the test current supply time, s
    1...7200
    Range of measurements of the test current supply time, ms 50...990
    Reduced error of the test current measurement, %
    ±3
    Reduced error of the measurement of the current flow duration and switching off time, %, max
    ±3
    Continuous running time under the maximum current, s, min
    10
    Maximum consumed power, kVA 55
    Net weight of IT-20 (current supply), kg, max 80
    Net weight of the control unit (without flexible busbars), kg, max 20
    Dimensions, mm, max
    960х680х400
    Lifespan, years, avg 10
