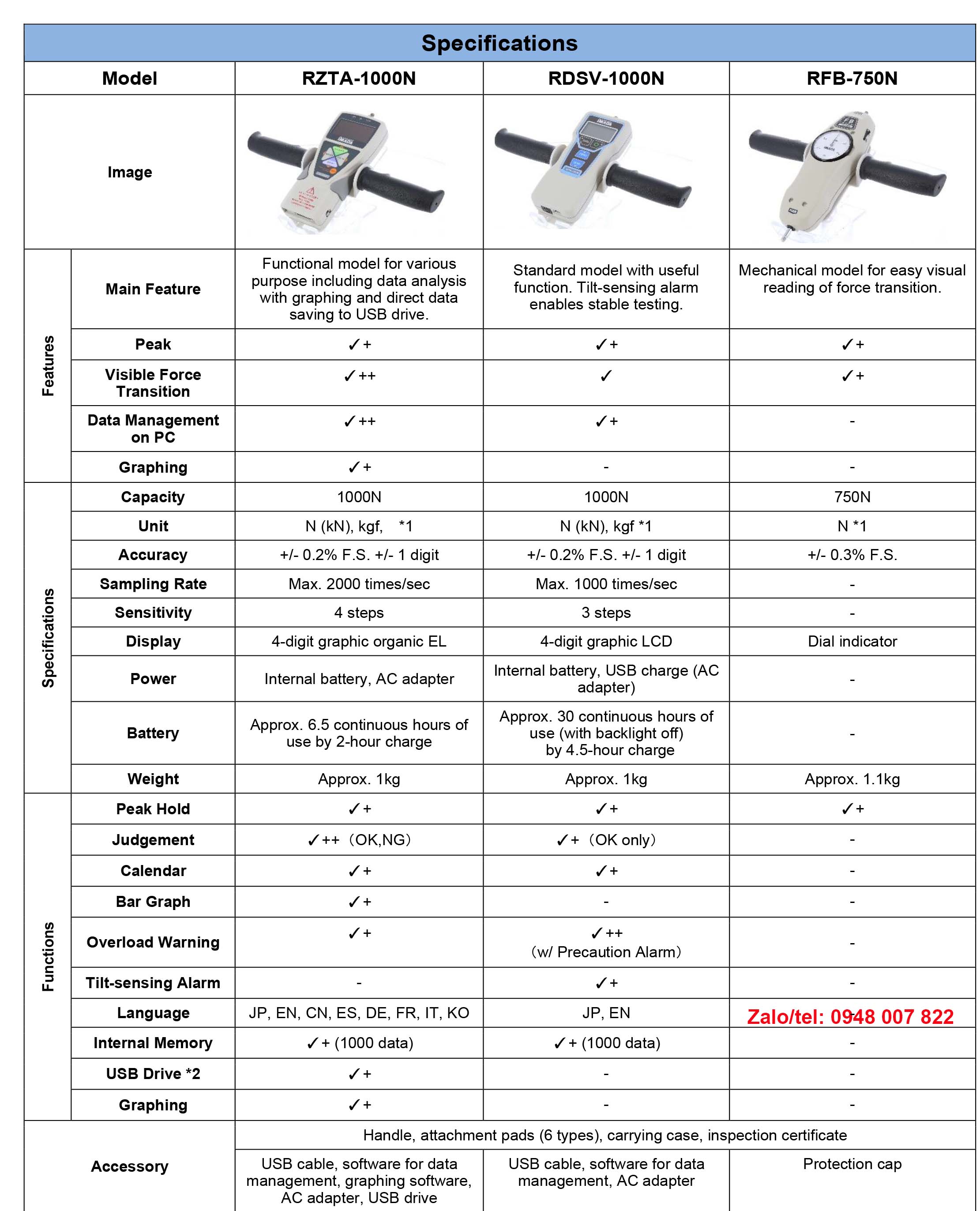

| Model |
RZTA-1000N |
RDSV-1000N |
RFB-750N |
| Features |
Main feature |
Functional model for
various purpose
including data analysis
with graphing
and direct data saving
to USB drive. |
Standard model
with useful function.
Tilt-sensing alarm enables stable testing. |
Mechanical model for easy visual reading of force transition. |
| Peak |
✓+ |
✓+ |
✓+ |
Visible
force transition |
✓++ |
✓ |
✓+ |
Data management
on PC |
✓++ |
✓+ |
– |
| Graphing |
✓+ |
– |
– |
| Performance |
Capacity |
1000N |
1000N |
750N |
| Unit |
N (kN), kg (*1) |
N (kN), kg (*1) |
N (*1) |
| Accuracy |
+/- 0.2%F.S. +/-1digit |
+/- 0.2%F.S. +/-1digit |
+/- 0.3%F.S. |
| Sampling rate |
Max. 2000 times/sec |
Max. 1000 times/sec |
– |
| Sensitivity |
4 steps |
3 steps |
– |
| Display |
4-digit graphic organic EL |
4-digit graphic LCD |
Dial indicator |
| Power |
Internal battery, AC adapter |
Internal battery, USB charge (AC adapter) |
– |
| Battery |
Approx. 8 continuous hours
of use by 4.5 hour charge |
Approx. 30 continuous hours
of use (with backlight off)
by 2 hour charge |
– |
| Weight |
Approx. 1kg |
Approx. 1kg |
Approx. 1.1kg |
| Functions |
Peak hold |
✓+ |
✓+ |
✓+ |
| Judgement |
✓++(OK,NG) |
✓+ (OK only) |
– |
| Calender |
✓+ |
✓+ |
– |
| Bar graph |
✓+ |
– |
– |
| Overload warning |
✓+ |
✓++ （w/ Precaution Alarm） |
– |
| Tilt-sensing alarm |
– |
✓+ |
– |
| Language |
JP, EN, CN, ES, DE, FR, IT, KO |
JP, EN |
– |
| Internal memory |
✓+ (1000 data) |
✓+ (1000 data) |
– |
| USB Drive *2 |
✓+ |
– |
– |
| Graphing |
✓+ |
– |
– |
| Accessory |
Handle, attachment pads (6 types), carrying case, inspection certificate |
USB cable, software for data management, graphing software,
AC adapter, USB drive |
USB cable, software for data management, AC adapter |
Protection cap |
