| Outline |
Advanced model with various functions such as data saving in USB memory stick, angle(displacement) I/O and more |
Standard model |
| Accuracy |
±0.5%F.S.±1digit |
| Unit of measurement (*1) |
N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in (N-cm, kgf-cm, lbf-in and ozf-in are available for 0.5N-m.) |
| Display |
4-digit Organic EL |
| Display update |
16 / sec |
| Sampling rate |
2000 data / sec at maximum (*2) |
| Battery |
Nickel-hydrogen battery / Operating time:8 hours (2hours full charge) (*3) |
| Safe overload rating |
Approx.200%F.S. |
| Operating environment |
Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Function |
Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory,
Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer,
+NG alarm, Off timer (auto power off), Dumping, Time display, setting lock |
| Angle zero reset at selected torque(*4) |
– |
| Output |
USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
|
| Sub comparator 2 steps (output of large or small judgment), USB flash drive, Angle(displacement) (*4) |
– |
| Overload warning |
Approx.110%F.S. (Warning message and alarm ) |
| External connecting switch |
SEND (a point of contact holding), Zero reset, Peak ON/OFF setting |
| Weight |
Display : approx.490g |

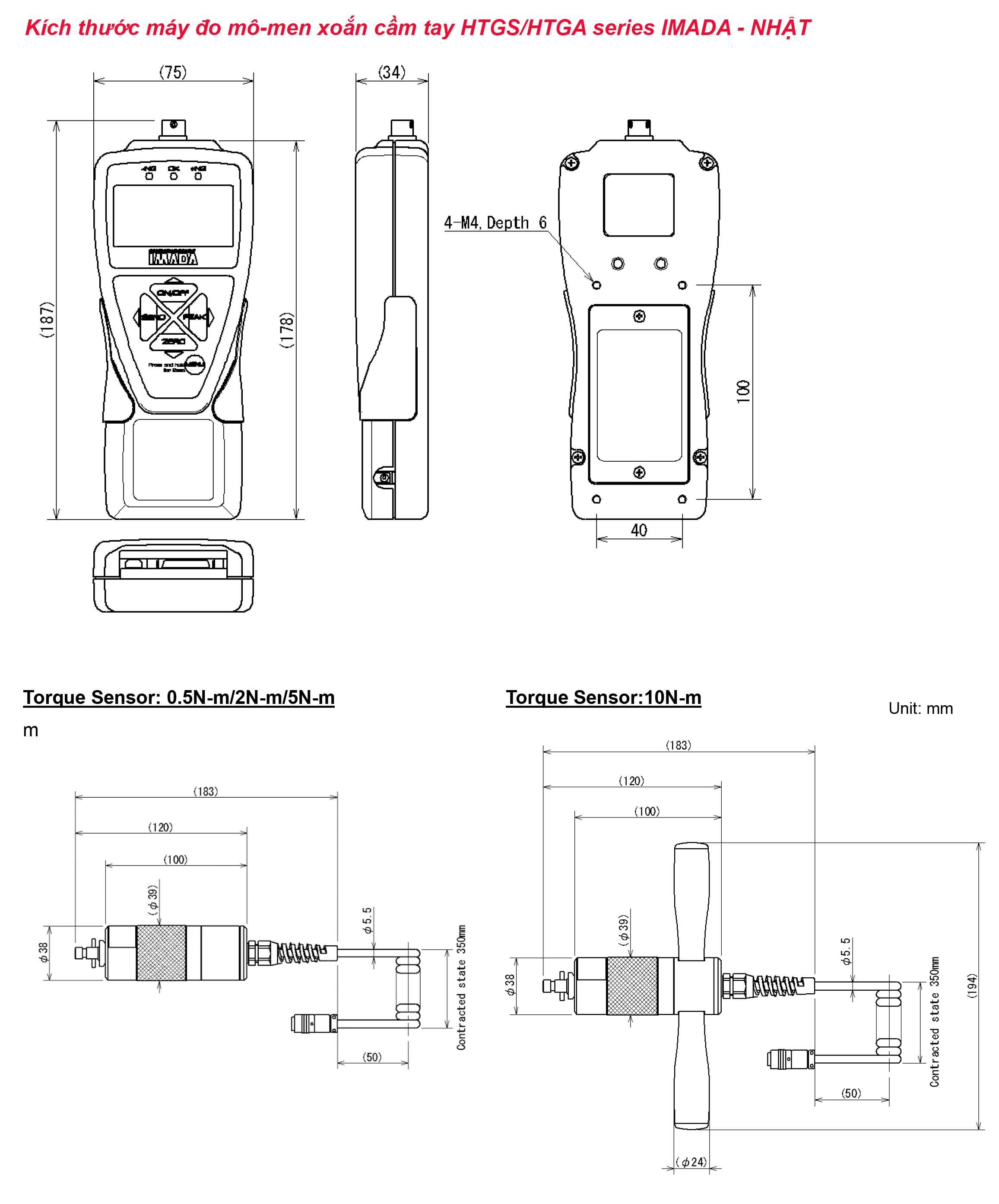

| Dimensions |
Please refer to dimensions. |
| Accessory |
AC adapter, Inspection certificate, CD driver (including simple software for data logging),
USB cable, Carrying case, L wrench, handles (10N-m range only) |
| USB flash drive adapter（*6） |
– |
| Applicable Attachment |
Please see Specification for Torque Gauge/ Motorized Stand Attachment and
Specification for Torque Gauge Table Attachment |
