| Capacity |
1000N (100kgf) |
3000N (300kgf) |
| Stroke when a force gauge is mounted(*1) |
250mm |
320mm |
| Travel of a mounted force gauge |
1.2mm / a complete turn of its handle |
0.6mm / a complete turn of its handle |
| Size |

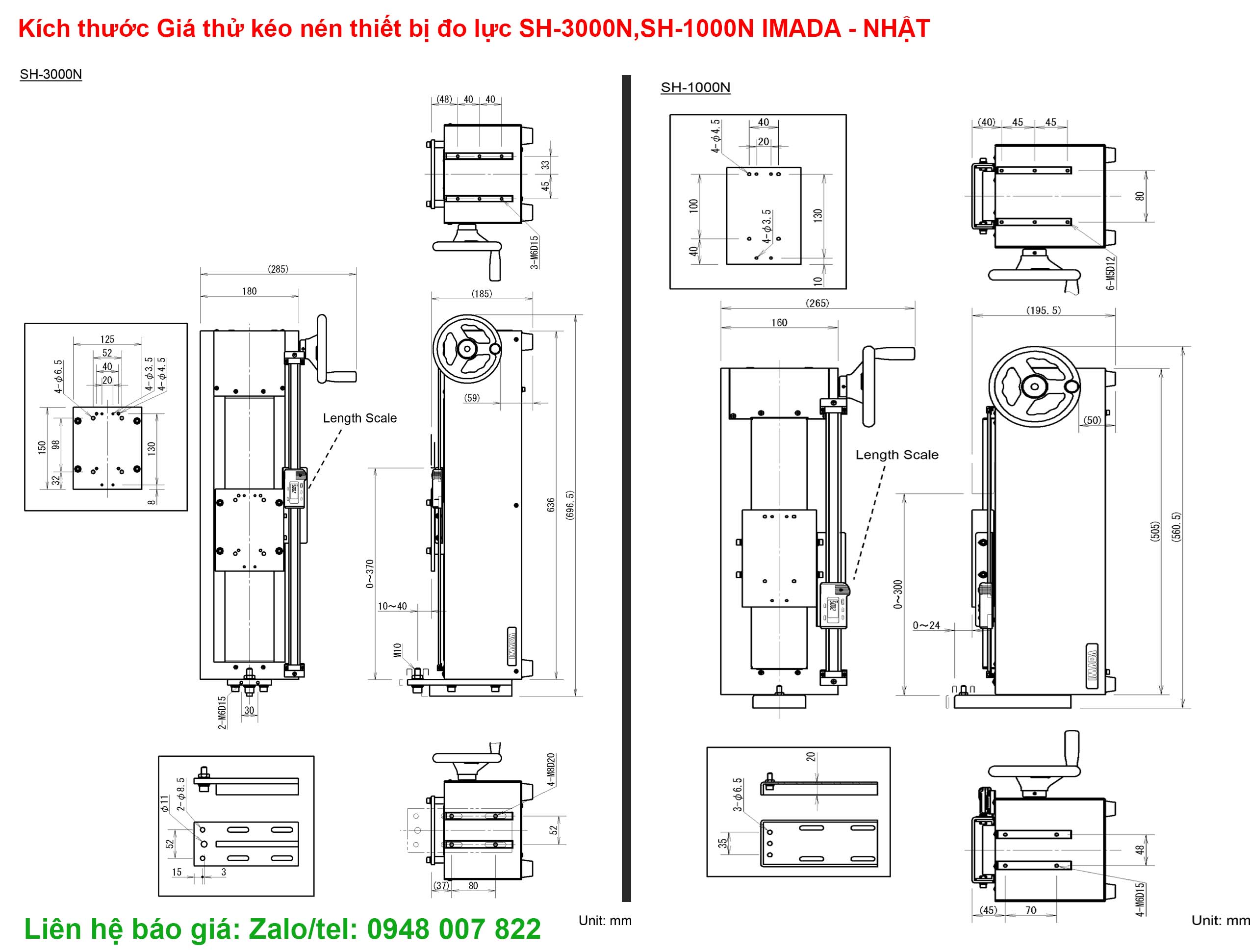

Please refer to dimensions |
| Weight |
Approx.15kg |
Approx.22kg |
| Gauges that can be combined(*2) |

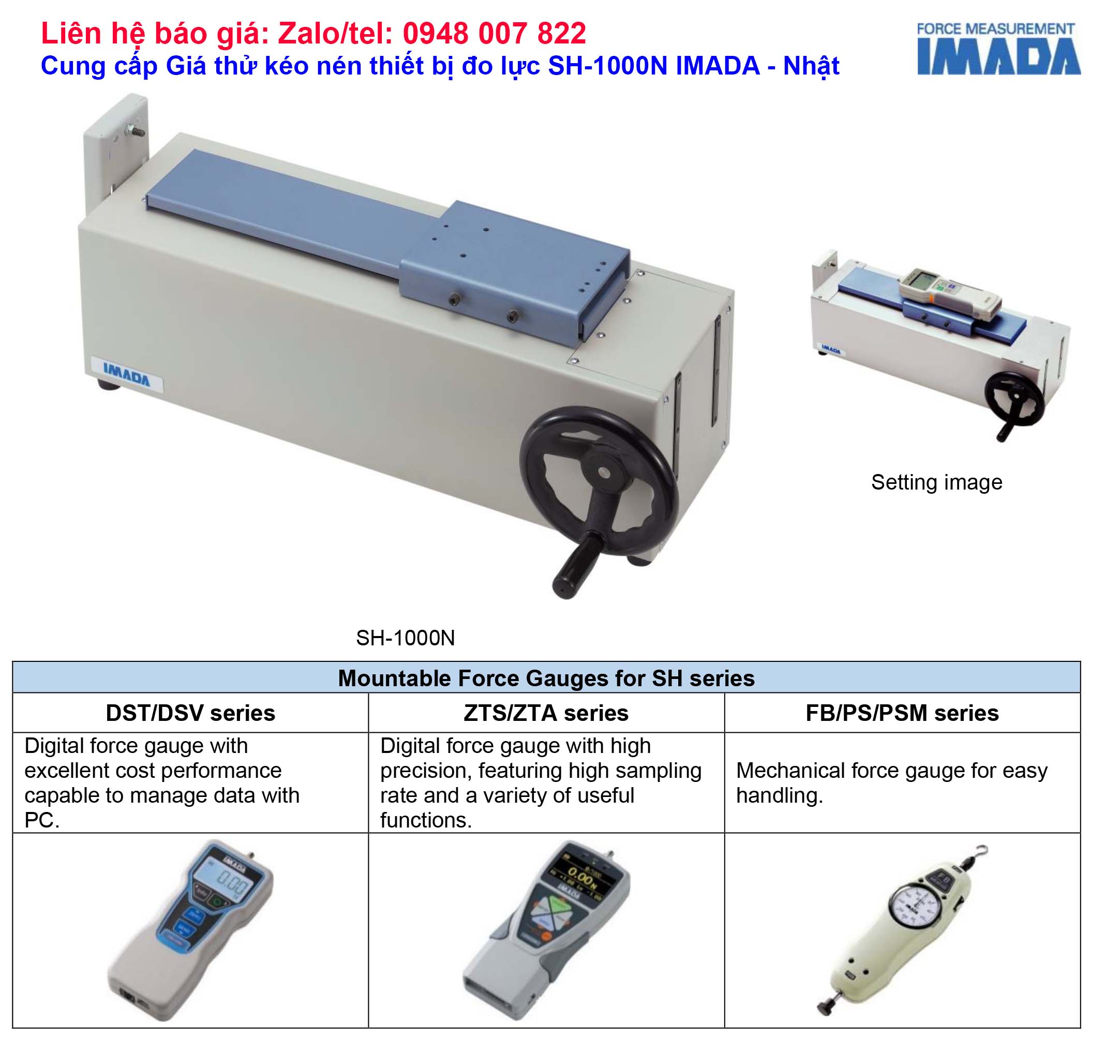

Mechanical / Digital Force gauges |
| Load cells and high capacity model cannot be combined. |
Load cells cannot be combined. |
| Accessory |
Gauge mounting plate, Screws to mount a force gauge, Tools, Instuction manual |
| Option |
Length meter, Long stroke
|
