| Capacity |
500N (50kgf) |
1000N(100kgf) |
3000N(300kgf) |
| Stroke when a force gauge is mounted (*1) |
275mm |
379mm |
379mm |
| Travel of a mounted force gauge |
2mm / a complete turn of its handle |
1.2mm / a complete turn of its handle |
0.6mm / a complete turn of its handle |
| Function |
Mechanical stopper |
| Size |

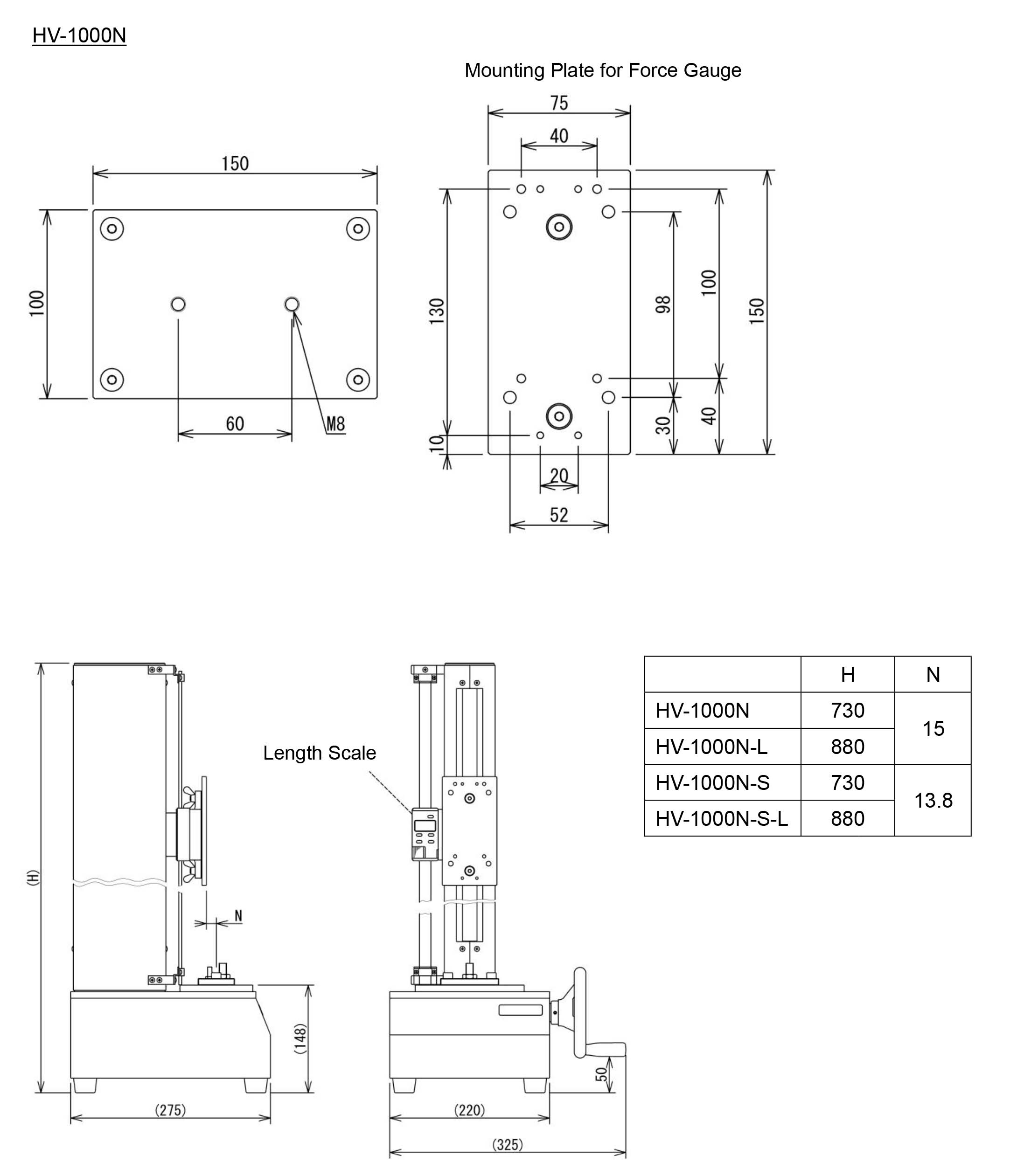

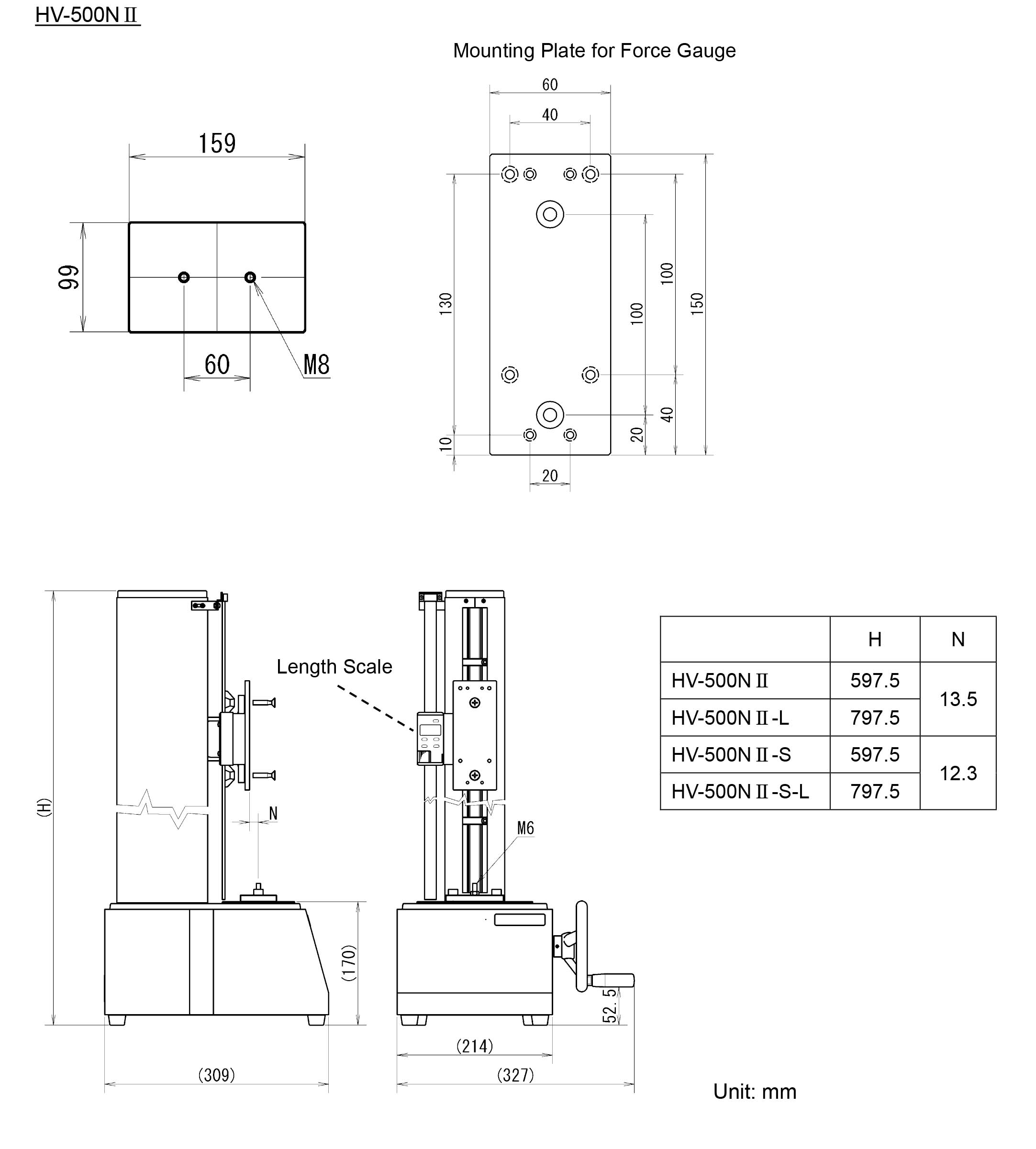

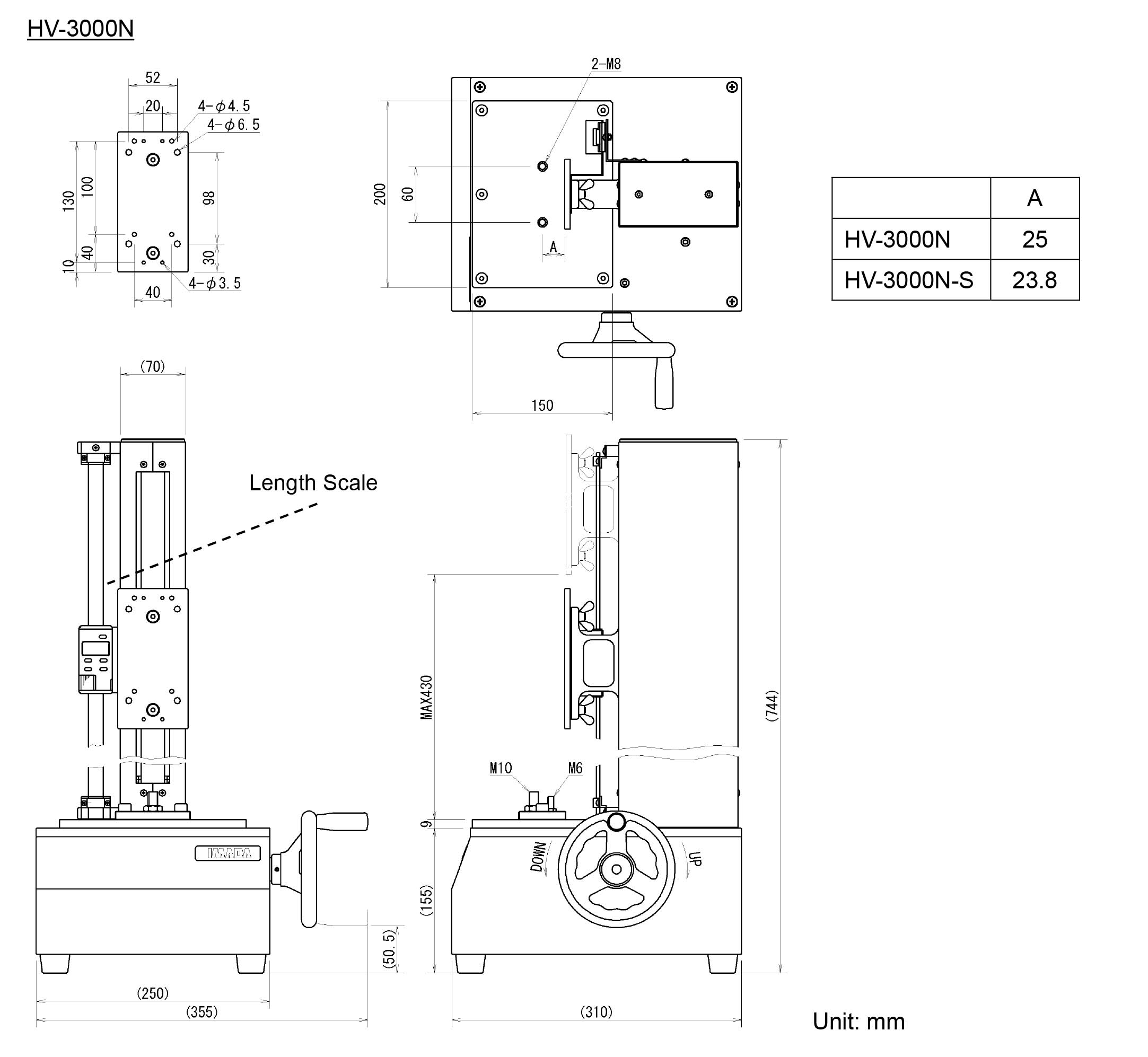

Please refer to the dimensions and specifications |
| Weight |
Approx.10kg |
Approx.18kg |
Approx. 24kg |
| Gauges that can be combined (*2) |
Popular and standard model |
Popular, standard, high capacity model |
| *Load cells cannot be combined. |
| Accessory |
Grip mounting adaptor GF-1 (M6 thread) |
Grip mounting adaptor GF-2（M10・M6 thread） |
| Option |
Length meter, Long stroke |
Length meter
|
