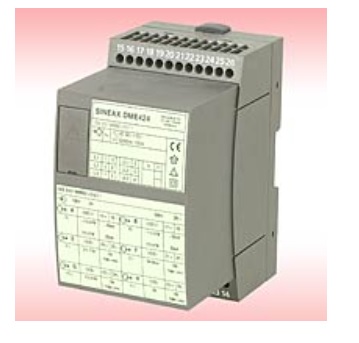

Bộ chuyển đổi dòng điện CAMILLE BAUER SINEAX DME424
Programmable multi-transducer for simultaneously acquiring several quantities in heavy current power systems. 2 analog outputs, 4 digital outputs, 4 meters, RS232.
The output quantities of the analog outputs can be configured as load-independent direct current or direct voltage signals. The digital outputs are suitable for limit value monitoring or energy metering.
With 2 analog and 4 digital outputs
4 programmable energy meters for Ah, kVAh, kWh and kvarh
Programmable application (type of electrical system)
Rated current: 1..6A
Rated voltage: 57,7...400V (P-N) rsp. 100...693V (L-L)
Programmable universal analog outputs
Accuracy: U/I 0.2%, P 0.25%
Universal digital outputs: meter transmitter, limit values
Password protected software for programming, data analysis and simulation
AC-DC power pack with large tolerance range, or AC only
Housing for top-hat rail or wall mounting
Certifications: CSA
