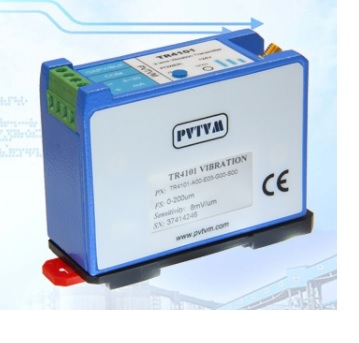

Bộ chuyển đổi tín hiệu đo độ rung và tốc độ vòng quay PVTVM TR4101, TR4102
2-wire loop powered transmitter for Radial Shaft Vibration
Does not require proximity probe driver
4-20mA output
Buffered output/ GAP
Compatible with other manufacturers’ proximity probes (5mm, 8mm and 11mm)
Powered by DCS/PLC directly
Product Detail:
The TR4101 is a cost-effective solution for monitoring the radial vibration on the shaft of balance of plant machines. The TR4101 combines the proximity probe driver and the signal conditioning circuit into one package. It works with a proximity probe and extension cable as a system.
Electrical
Power Supply:
16-30VDC
Frequency Response (±3dB):
2.0 - 3,000Hz
