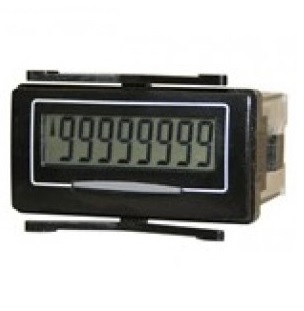

Bộ đếm Trumeter 7016 LCD, 7111HV, 7111
Display
8 digit black LCD, 9mm characters with leading zero blanking
Count Range
99999999 display rollover to 0
Count Input
10kHz maximum, negative edge triggered, 0.7V threshold, 50µS minimum pulse length, TTL/CMOS Compatible
Reset Input
Negative edge triggered, 0.7V threshold, 15mS minimum pulse length, TTL/CMOS Compatible
Direction Input
Add=logic 1, Subtract=logic 0 (0V)
Operating Temp
-10°C to +60°C
