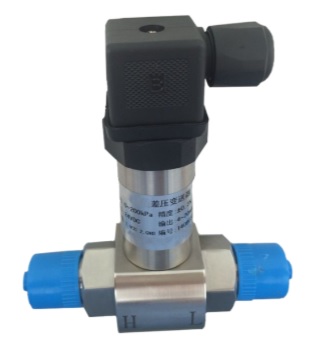

Cảm biến đo chênh áp KDS KDS602
Medium: gas or liquid compatible to stainless steel
Pressure ranges: 0-35bar
Pressure type: differential (D)
Output signal: 4~20mA
Accuracy: 0.25%FS or 0.5%FS
Long term stability : <0.2%FS/year
Supply voltage: 24VDC
Operating temperature range: -30~+70℃
Storage temperature range: -40~+85℃
Process connection: G1/4 ,1/4’’NPT, or others
Material of pressure membrane: 316L
Dimension （Unit: mm） Electrical connection
