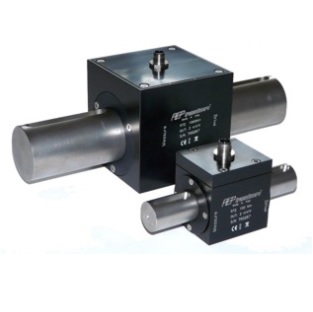

TRX STATRIC torque transducers for the measurement in clockwise and anticlockwise direction FLANGE process coupling Nominal torque from 50 N•m to 5000 N•m Class (EURAMER cg-14) 0.05 and 0.1 Linearity and Hysteresis 0,03% Output: 1mV/V HIGH ACCURACY
TRS STATRIC torque transducers for the measurement in clockwise and anticlockwise direction SQUARE drive process coupling (UNI ISO 1174-1) Nominal torque from 0,5 N•m to 1000 N•m Linearity and Hysteresis 0,2% or 0.1% Output: 2mV/V LOW PRICE and EASY APPLICATIONS
RT2 ROTATING torque transducers for the measurement in clockwise and anticlockwise direction CYLINDRICAL or SQUARE coupling Nominal torque from 0.5 N•m to 5000 N•m Linearity and Hysteresis 0,20% Nominal speed of rotation 4000 rpm Contact transmission Versions with ENCODER integrated reading ANGLE and SPEED RT2 standard outut ±2mV/V RT2A standard output ±10Volt
RT2-USB ROTATING torque transducers for the measurement in clockwise and anticlockwise direction CYLINDRICAL or SQUARE coupling Nominal torque from 0.5 N•m to 5000 N•m Linearity and Hysteresis 0,20% Nominal speed of rotation 4000 rpm Contact transmission Versions with ENCODER integrated reading ANGLE and SPEED Digital Output
EASYTORK ROTATING torque transducers for the measurement in clockwise and anticlockwise direction HEXAGONAL coupling whit quick action chuck Nominal torque 5 N•m, 10 N•m and 25 N•m Linearity and Hysteresis 0,20% Nominal speed of rotation 4000 rpm Contact transmission Versions with ENCODER integrated reading ANGLE and SPEED Digital Output
MICROTOR ROTATING torque transducers for the measurement in clockwise and anticlockwise direction HEXAGONAL coupling whit quick action chuck Nominal torque 5 N•m, 10 N•m and 25 N•m Linearity and Hysteresis 0,20% Nominal speed of rotation 4000 rpm Contact transmission Output 2 mV/V VERY COMPACT SIZE
DTR2 NEW PERFORMANCES Hand held digital indicator, totally autonomous and with input for strain gauge based torque transducers. It is ideal to be used in the most modern static and dynamic measurement systems. With 0,02% accuracy makes it possible to be used use in quality systems as first or second line sample, periodically calibrated by a calibration centre (ACCREDIA in italy).
