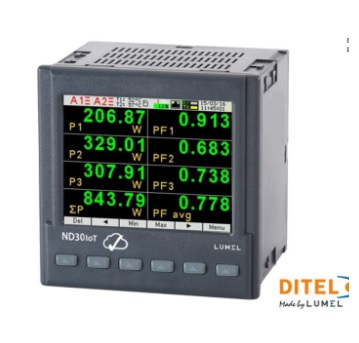

Đồng hồ đo công suất điện DITEL ND30BAC
Measurement of 54 parameters, harmonics up to 51st, graphical screen-fully configurable by a user and Profinet interface – these are just some advantages of our new power network meter ND30BAC type.
- Measurement of 54 power network parameters, including current and voltage harmonics up to 51st, in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
- Graphical color display: lcd tft 3,5’’, 320 x 240 pixels, fully configurable by a user (10 screens, 8 parameters in each).
- Indications include the values of programmed ratios.
- Memory of minimum and maximum values.
- 2 configurable alarm outputs.
- Digital output RS-485 – MODBUs protocol.
- Modern and user-friendly BACnet/ IP interface.
- Programming of parameters using free eCon software.
- Battery backup RTC
- Overall dimensions: 96 x 96 x 77 mm.
