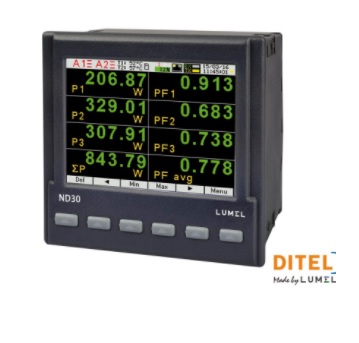

Đồng hồ đo công suất điện DITEL ND30PNET
Measurement of 54 parameters, harmonics up to 51st, graphical screen-fully configurable by a user and Profinet interface – these are just some advantages of our new power network meter ND30PNET type.
- Measurement and registration of 54 power network parameters, including up to 51º harmonic of voltage and current, in systems of 1-phase 2-wire or three-phase 3 or 4-wire balanced and unbalanced.
- Color graphic display: 3.5-inch TFT LCD, 320 x 240 pixels, fully configurable by the user (10 vies, 8 parameters in each)
- The indications include the values of the programmed transformation ratios.
- Memory of minimum and maximum values.
- 2 configurable alarm outputs.
- Optional: analog output 0/4 … 20 mA and 2 PT 100 inputs (for example, for the Transformer temperature measurement).
- RS-485 digital output – MODBUS protocol.
- Modern and easy-to-use Ethernet / Profinet interface (version 2.2).
- Parameter programming through free eCon software.
- RTC reserve battery.
- Overall dimensions: 96 x 96 x 77 mm.
