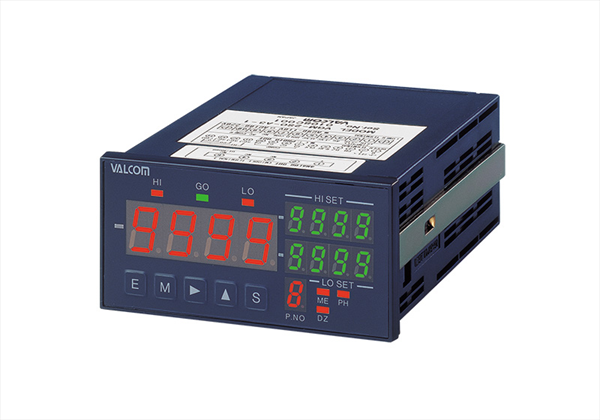

- Measurement at any 4 points during pressurization process improves the accuracy of Go/No-Go judgment significantly.
- Lower in cost compared to pressure waveform data comparators.
- Initial peak removal function enables comparative measurement without counting irregular peaks that may appear when contacting the work.
- 3 types of output: Analog 4-20 mA, 0-10V and BCD are available.
- Various functions such as peak hold included.
To exclude sudden input from counts when contacting work, Clear Initial Peak function is provided.
This function enables comparison while ignoring initial peak values that are not necessary as the condition for comparison.
It is also useful if effective maximum load falls short of the initial peak value like when the maximum load is held at all times.
The time period ("T" in the figure) for clearing initial peak can be set as desired. This allows comparative measurement suitable to the system to be used.
