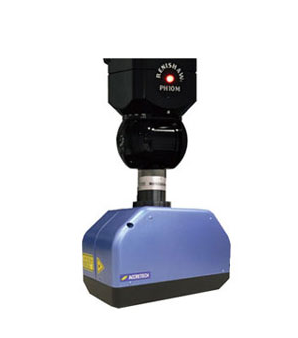

- It is made possible to measure almost all kinds of workpieces without spray because the light receiving unit is adjusted automatically. Workpieces with different reflectivity can be measured at the same time without adjusting light amounts.
- Measurement width/measurement pitch can be chosen while realizing the reduction in measurement time.
- Data acquisition of up to 30,000 points in 90 lines per second. Thereby, compared with the conventional point measurement,
measurement time has been reduced to 1/120, and form measurement by surface measurement can be made efficient.
- Design that cannot be easily influenced by external disturbing light.Depending on the intensity of reflected light, valid data is selected on software. Unreliable data obtained under the influence of external disturbing light is deleted.
When measuring the compound workpiece with different reflectivity, a laser sensor detects the intensity of received light and controls the power of outgoing radiation light automatically.
By this feedback control, it automatically adjusts the suitable intensity of received light. For this reason, fine adjustment of the quantity of light is unnecessary.
Moreover, it is made possible to measure a workpiece with a low reflectivity or a workpiece with a high reflectivity (glossy surface) that cannot be measured conventionally, and therefore, various workpiece measurements can be dealt with flexibly.
