Máy đo điện trở cách điện Chauvin AEMC 6527, 1050, 1060

Máy đo điện trở cách điện Chauvin AEMC 6527, 1050, 1060

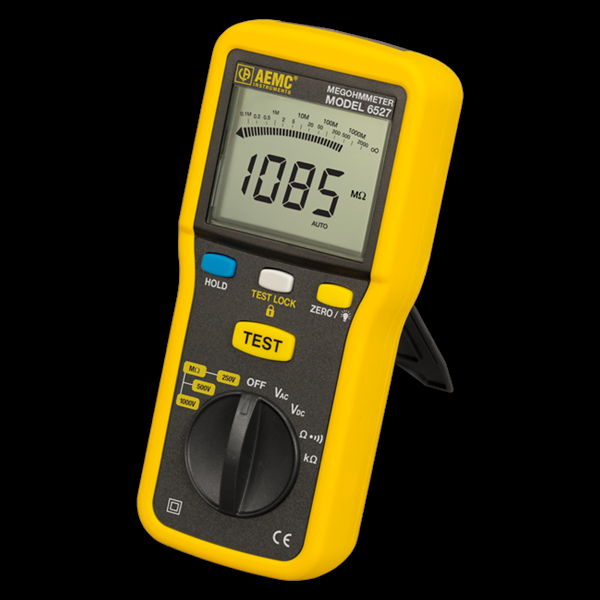

• Megohmmeter Model 6527

  Cat. #2126.53
  Digital 250V, 500V, 1000V, Continuity, 400kΩ, V
  Measures insulation resistance from 1kΩ to 4000MΩ using three user selectable test voltages of 250V, 500V, and 1000V. Can perform continuous tests up to 15 minutes. Designed for insulation tests on cables, switchgears, motors, DC generators, power tools, and small appliances. Also functions as a multimeter for measuring voltage, continuity, and other parameters.

•

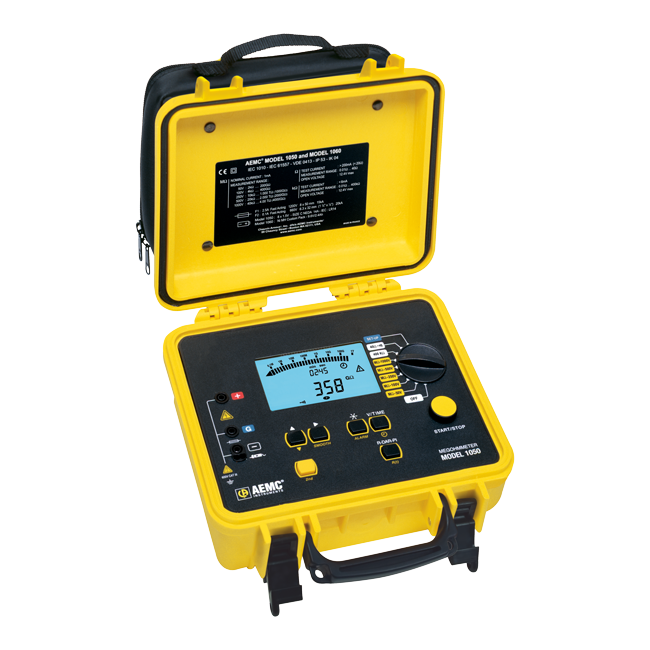

  Megohmmeter Model 1050

  Cat. #2130.01
  Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity
  Measures insulation resistance using test voltage combinations of 50V, 100V, 250V, 500V and 1000V. Measurements are displayed on a large dual-display LCD with bargraph for quick viewing of changes or trends. Automatically provides DAR and PI ratios directly on the display; user defined PI time intervals can also be programmed. Automatic test inhibitor prevents testing on live circuits above 25V. Memory feature enables storage, recall, and display of resistance values taken at user specified intervals during a test.

•

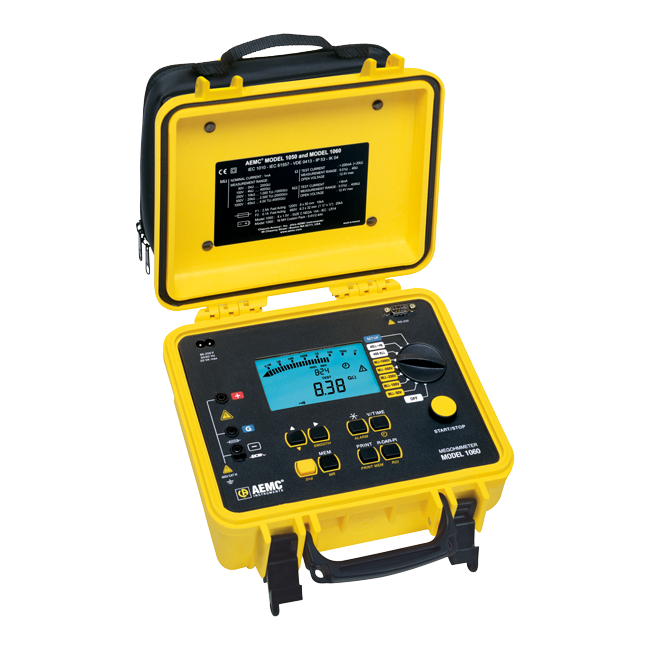

  Megohmmeter Model 1060

  Cat. #2130.03
  Digital, Analog Bargraph, Alarm, Timer, 50V, 100V, 250V, 500V, 1000V, Auto DAR/PI, Resistance, Continuity, RS-232 w/DataView® Software, 128kB Memory
  Measures insulation resistance to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement, and duration of test. Memory function enables storage of test results. RS-232 interface allows connection to a computer running DataView® for configuring the instrument and downloading test results and generating reports.
