Máy đo điện trở cách điện Chauvin AEMC 6550, 6555, 1026

Máy đo điện trở cách điện Chauvin AEMC 6550, 6555, 1026

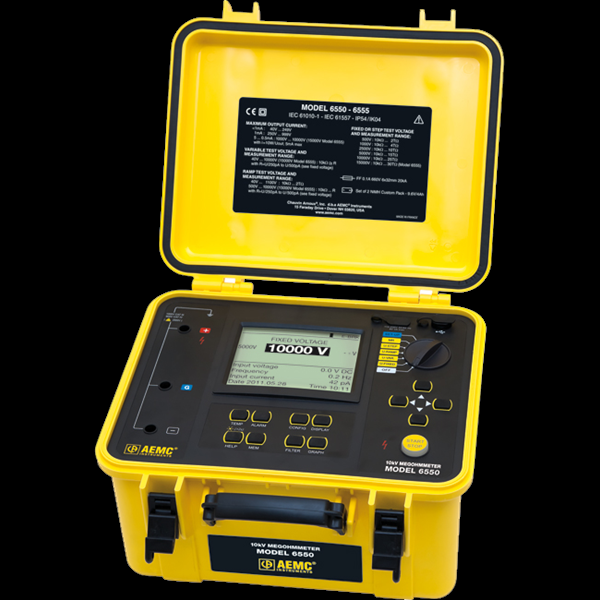

• Megohmmeter Model 6550

  Cat. #2130.31
  Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, 10kV, Ramp, StepV, Variable, Auto DAR/PI/DD, USB, w/DataView®Software
  Fully automated 10,000V graphical insulation tester for measuring a wide variety of electrical insulation resistance values on cables and devices operating at high voltage, using standard fixed voltages (500, 1000, 2500, 5000 and 10,000V) or three programmable step voltage profiles (from 40 to 10,000V). USB interface allows connection to a computer running DataView® for configuring the instrument, downloading test results, and generating reports.

•

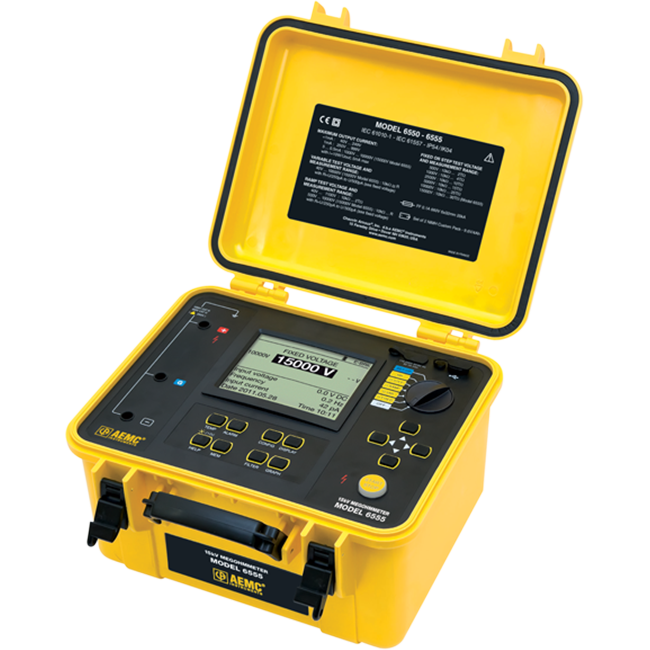

  Megohmmeter Model 6555

  Cat. #2130.32
  Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V, 2500V, 5000V, 10kV, 15kV, Ramp, StepV, Variable, Auto DAR/PI/DD, USB, w/DataView® Software
  Fully automated 15,000V graphical insulation tester for measuring a wide variety of electrical insulation resistance values on cables and devices operating at high voltage, using standard fixed voltages (500, 1000, 2500, 5000, 10,000V, and 15,000V) or three programmable step voltage profiles (from 40 to 15,000V). USB interface allows connection to a computer running DataView® for configuring the instrument, downloading test results, and generating reports.

•

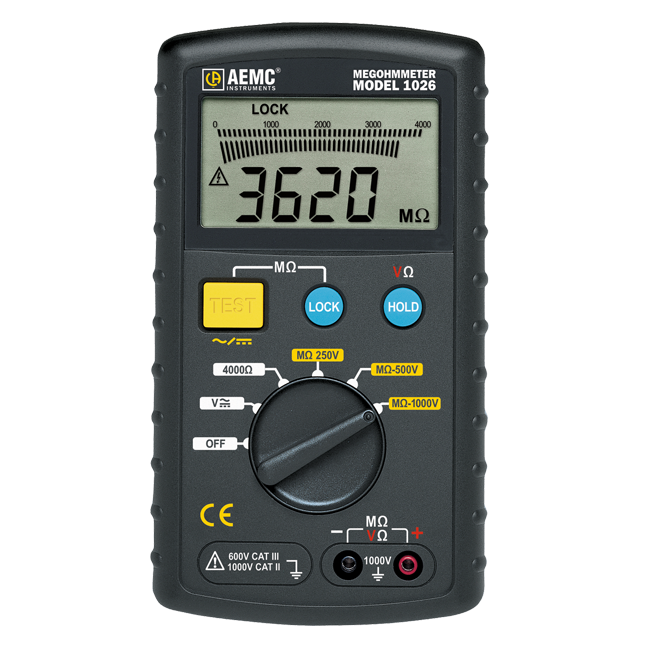

  Megohmmeter Model 1026

  Cat. #2117.72
  Digital 250V, 500V, 1000V, 4000Ω, V
  Hand-held meter for measuring insulation resistance from 1kΩ to 4000MΩ, using test voltages of 250V, 500V and 1000V. Also measures voltage, resistance, and continuity.
