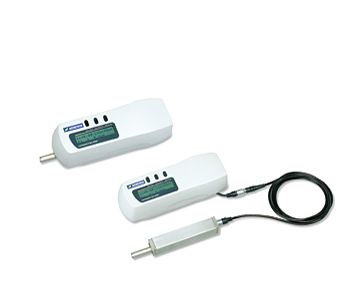

Powerful functions in a compact design.
Large memory capacity holds 10 measurement data.
Max. measuring range: 12.5mm
Allows highly efficient axial direction measurement using horizontal tracing in a constricted location where conventional measurement is difficult.
Max. measuring range: 4.0 mm
Measuring speed: 0.6 mm/s
AI Function for Easy Operation (Patent Pending)
The AI function automatically configures optimum conditions for measuring range, evaluation length, cut-off value, and recording magnification (when a printer is being used).
Can be Used Anywhere in the World
HANDYSURF conforms to ISO, JIS (2001, 1994, 1982), ASME, CNOMO and other international standards. It supports operation in English, Japanese, German, French, Italian, Spanish and Portuguese. It meets European safety standard requirements for CE marking.
A displacement pickup provides precise surface roughness measurement. Since the pickup is replaceable, optional pickups specialized for file holes and deep grooves can also be used, facilitating a wide range of measurements.
