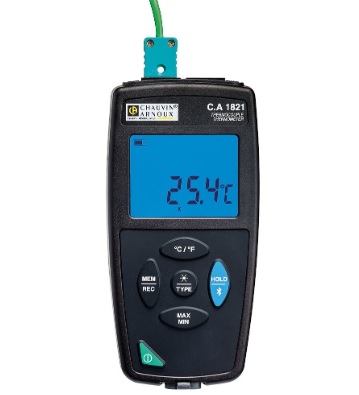

Máy đo nhiệt độ và ghi dữ liệu Chauvin Arnoux CA 1821, CA 1822, CA 1823
input for K, J, T, N, E, R or S thermocouple.
- Measurement range: - 210 °C to +1,767 °C
- Intrinsic uncertainty:
(J, K, T, N, E) θ ≤ - 100 °C: ± (0.2% R + 0.6 °C)
(J, K, T, N, E) -100 °C < θ ≤ + 100 °C : ± (0.15% R + 0.6 °C)
(J, K, T, N, E) +100 °C < θ: ± (0.1% R + 0.6 °C)
(R, S) θ ≤ + 100 °C : ± (0.15% R + 1.0 °C)
(R, S) +100 °C < θ: ± (0.1% R + 1.0 °C)
- Resolution: 0.1 °C or 1 °C
- Min, Max, Hold functions, Alarms / °C or °F / Backlighting
- Recording up to 1 million points
- USB or Bluetooth interfaces
- 1,000-hour battery life in portable mode / 3 years for recording (15-minute measurement interval)
- IP54 magnetized casing
- Miniature female compensated connector
- Dimensions: 150 x 72 x 32 mm
- Weight: 260 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory
