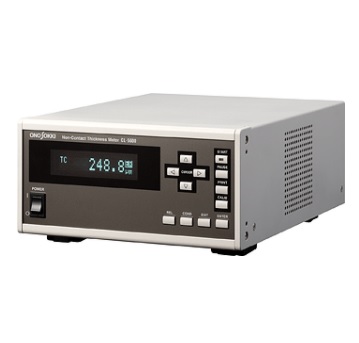

Thiết bị đo chiều dày không tiếp xúc Ono Sokki CL-5610, CL-5610S
The CL-5610/5610S is used to perform non-contact thickness measurement of objects under measurement including conductors, semiconductors and insulators in combination with the new-developed VE series capacitance type gap detector. The CL-5610/5610S can be connected up to 2 gap detectors and also used as 2-ch displacement meter.
The CL-5610 has a built-in amplifier for a sensor and can be used to connect with the VE sensor directly. This model is effective for off-line measurement on a desktop PC. (The cable length between sensor and a main unit is 1.5 m, cannot be extended.)
The CL-5610S can be used away from the VE sensor through an external amplifier. The cable length between a main unit and an external amplifier is 2.5 m as standard, up to 10-m extension as an option. It is suitable when the main unit of the thickness meter is set up separately from a sensor such as installation to the other equipment.
