Precise Increment Testing

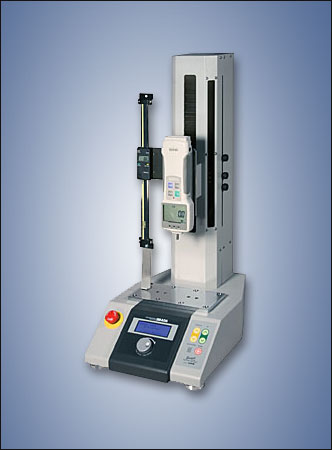

EMX-275 features a unique jog movement control, for precise increment testing. In jog mode, each click of the program dial moves the cross head exactly .01 mm (may reduce at maximum capacity depending upon material hardness).
Cycle Mode
In cycle mode, automated fatigue tests are easy to setup. Press the unique program dial and turn, to make selections from the menu screens and set mode, speed, test duration, units and cycles. Separate screens control start and return speeds.
Force Control
Force controlled non-destructive tests are also easy to setup and program. Connect an Imada Z Series force gauge to the EMX-275 test stand to enable the following force controlled tests and Conditional Overload Prevention.
Maintain Force Between High/Low Setpoints
Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the Z Series force gauge. The cross head maintains that force for the programmed interval and then uses return speed to reset for the next cycle.
