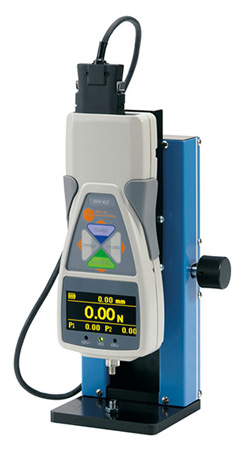

The FSA-MSL Material Tester is designed for force vs distance measurement. It is ideal for tests requiring very small movement, like switch tests. The tester features a reversible base plate, allowing it to be used on uneven or obstructed surfaces. The highly visible EL display and plain language menus in eight languages make programming fast and easy. Both force and displacement values are displayed plus user-selectable data; high/low setpoints, peak, memory data, etc.
Auto Start Displacement
The auto start displacement feature enables users to quickly apply a certain force and read displacement or stop at a certain displacement and read the force value. The manual control knob moves the gauge 18mm per turn for precise control during tests.
Force Recorder Professional Included
Use the included Force Recorder software to capture both force and displacement data and create force vs. displacement profile graphs. Data can be captured to a pc at up to 2,000 data points per second. Data acquisition can also be accomplished in the field. The tester can output directly to a USB flash drive in CSV format at 100 data/second. Peak data can be saved to gauge memory and exported to USB flash drives.
