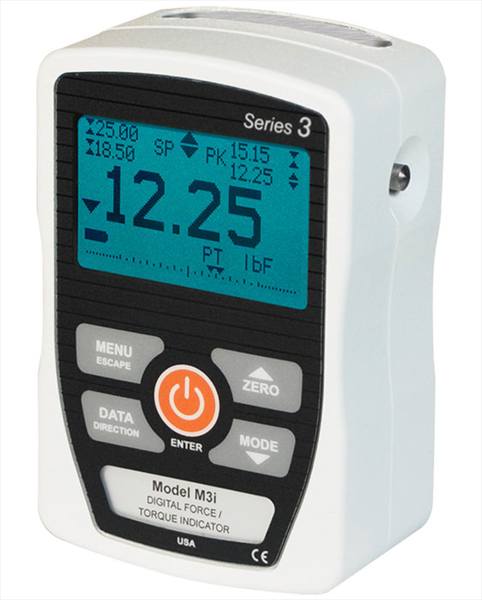

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force / torque indicator.
The 3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.
The gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
USB data output
Configurable audio alarms and key tones
Configurable audio alarms and key tones
MESURTM Lite data collection software included
High-speed 2,000 Hz sampling rate
Ultra-compact size
Programmable set points with pass/fail audible and visual indicators
Interchangeable force and torque sensors through Plug & Test™technology
Peak readings and set points always displayed
External trigger mode - for switch contact testing or remotely stopping display update
Live load bar graph with set point markers
Programmable auto-shutoff
Battery or AC operation
CE mark
