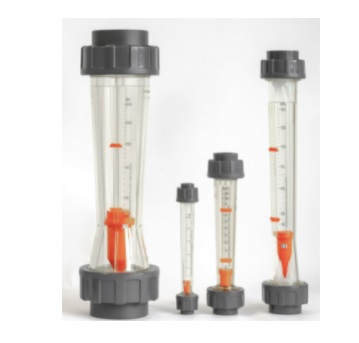

Thiết bị đo lưu lượng Nixon DFM All-Plastic Variable Area Flowmeters
Advantages
3-50,000 litres/hour liquid in 28 ranges each with 10:1 operating span
5 different overall lengths from 165-350mm
Choice of tube materials depending upon operating temperature and pressure up to 100°C and 10 Bar
Positive pipe 0-ring sealing requiring less tightening effort when installing
Standard or magnetic floats (where alarms required) of identical mass ensure identical flow ranges when changing
Optional bi-stable adjustable alarm on rear slide
Optional 4-20 mA transmitter
Special scales produced for liquids and gases other than water or air
