- The adjuster provided allows use with our MMJ series standard Motor Mounting Jig sets when you test the motor outside the temperature chamber.
- Hysteresis brake control and torque detection using tension-bar type strain gauge load cell ensures stable measurements across a wide range of rotation speeds.
- A total of seven different models are available (maximum torque 50 mN·m to 5 N·m).
- All the seven models have the same dimensions, so that one set of the MMJ-TC01 Motor Mounting Jig can be used with the seven models in common.
- The MMJ-TC01 Motor Mounting Jig attaches directly to the reference plate of the Dynamometer for precise axial alignment with the sample motor shaft and for accurate measurements.

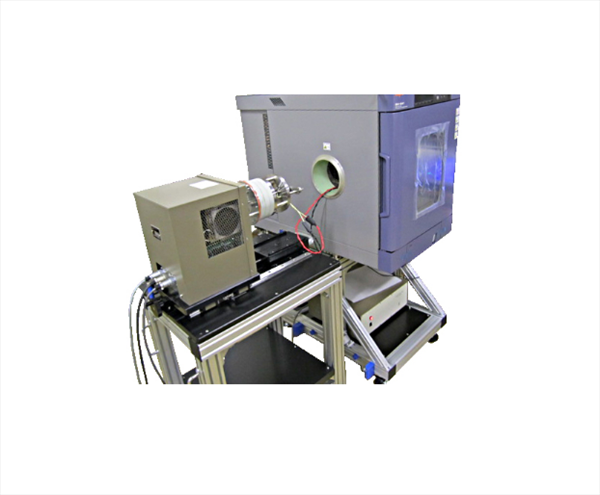

- The standard chamber mounting base (provided) allows easy setup with the Espec Temperature (& Humidity) Chamber model SH/SU-642.
