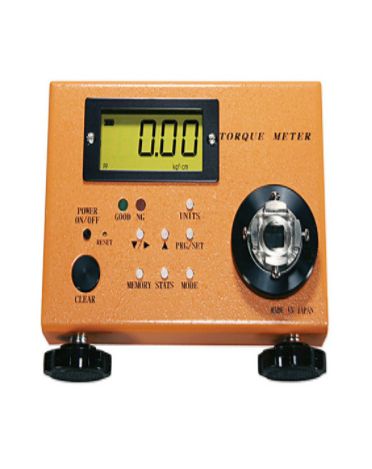

The Series i line of torque testers measure the peak torque of non-impact electric/air drivers. Under tightened bolts and screws do not generate sufficient clamp force and can lead to loosening and assembly failure. Over tightening, past the yield point, permanently deforms the screw joint and can also lead to failure which is why proper tightening torque is so important.
Heavy-duty metal construction
Programmable High/Low setpoints with audible beep for uniform torque tightening or GO/NO GO testing
2 – driver adapters included: i-8 & i-80 come with smart adapters, CD-150 & DI-11 come with spring adapters
USB virtual COM port sends peak (1 data) or continuous data (12 or 180 data/second)
Capacities up to 174 lb-in / 20 Nm
Selectable units lbf-in, Kgf-cm, N-cm and N-m
Statistics: number of data, Max, Min, Avg
Runs on internal NiCad batteries or AC adapter
3/8″ drive for socket wrenches
Peak, Real Time and Peak Down measuring modes (selectable)
Measure both clockwise and counterclockwise
