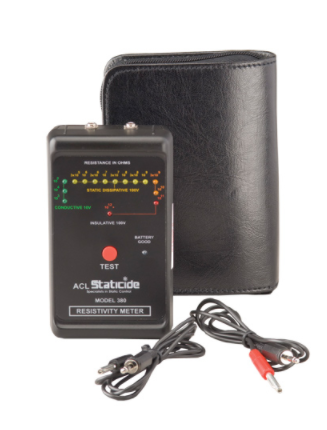

Easy to use, the ACL 380 handheld surface resistivity meter shows values through an LED scale that is coded with colors to signify conductive, dissipative, and insulative. There is also a colored "warning" stage to signal to the auditor that the material is at the higher end of the dissipative range and is close to being out of specification. Half decades indicate where the measurement value falls within the decade giving a closer indication to actual value.
Economical and lightweight, this indicator is perfect for assurance check for packaging and assembly lines. When the optional 5-lb probes are used, this audit kit will comply with IEC 61340-4-1, ANSI/ESDA S4.1 & ANSI/ESDA S7.1 for RTG and RTT testing.
Four color LED display segments (including warning stage)
Half decades for greater accuracy
Rails: tin copper wire
Dimensions: 2.8" x 5.1" x 1.4"
Conforms to ASTM D257
Includes calibration certificate
