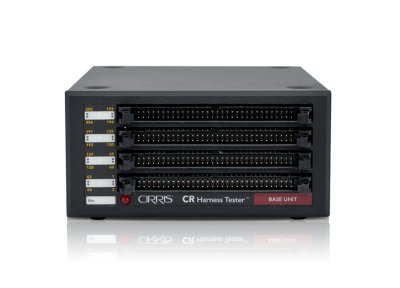

Thiết bị kiểm tra cáp điện Cirris CR
Test Points
256 points; expandable to 32,000 points in 256-point increments. (Max distance from base unit: 200 ft.)
Low Voltage Test
2 Wire
- Voltage: 10 V max
- Current: 1.6 μA to 6 mA
- Resistance: 0.1 Ω to 100 kΩ ±3% ±0.1 Ω, 100 kΩ to 1 MΩ ±5%
4 Wire
- Voltage: 10 V max
- Current: 1.6 μA to 6 mA
- Resistance: .001 Ω to 100 Ω ±2% ±0.001 Ω
Component Tests
- Diodes: 0 to 7 V
- Resistors: 0.1 Ω to 100 kΩ ±3%
- Capacitors: 100 pF to 1000 μF ±10%
Max Points Per Net
Unlimited
Digital Input/Output
Optional with external PLC
Test Point Interface
64 point (2 row x 32 pins) 0.1” male box header
User Interface
PC Requirements
- Test Station: 2.0 GHz min. processor speed, Windows 7®, Windows 8.1®, or Windows 10®, 15 GB hard drive space, 4 GB RAM, 256 MB min. video memory, 1024 x 768 min display resolution, sound (for audible feedback), USB 2.0 or 3.0 port
- Optional Network Database Server: As above except no sound or USB ports required. Windows XP®, Windows 7®, Windows 8.1®, Windows Server 2003® or Windows Server 2008® OS
