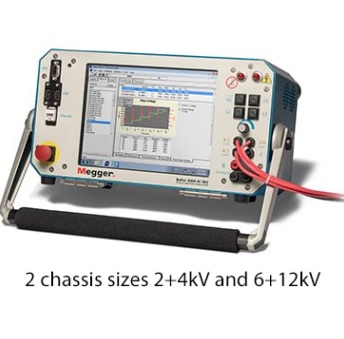

Thiết bị kiểm tra, phân tích động cơ Megger Baker AWA-IV
- Range includes 2 kV, 4 kV, 6 kV and 12 kV models
- Testing capabilities include: surge, winding resistance, Megohm, PI, DA, continuous ramp DC step-voltage, and DC hipot tests
- 12 kV HO (high-output) version for performing surge tests on large motors and generators
- Compatible with Baker PPX Power Packs to extend insulation testing voltage range (6 kV, 12 kV and 12 kV HO versions only)
- IEEE- and IEC-compliant surge test
- Surge waveform comparison by the patented Pulse to Pulse Error Area Ratio (PP-EAR) technique
- Incorporates advanced inter-turn assessment capabilities in a field portable instrument
- Microsoft Windows 10 Embedded operating system
- USB port for data transfer and printing with Windows 10 plug-and-play printers
The Baker AWA-IV automatically performs repeatable, user-programmable tests to thoroughly assess the strength of a motor’s insulation and circuit. In fact, it is the only high-voltage test instrument that a user can program to perform a specific set of insulation tests prior to being in the field, and then use as programmed in the field. The AWA-IV is also used to assure quality of motor rebuilds or new production motors before they are placed into service.
