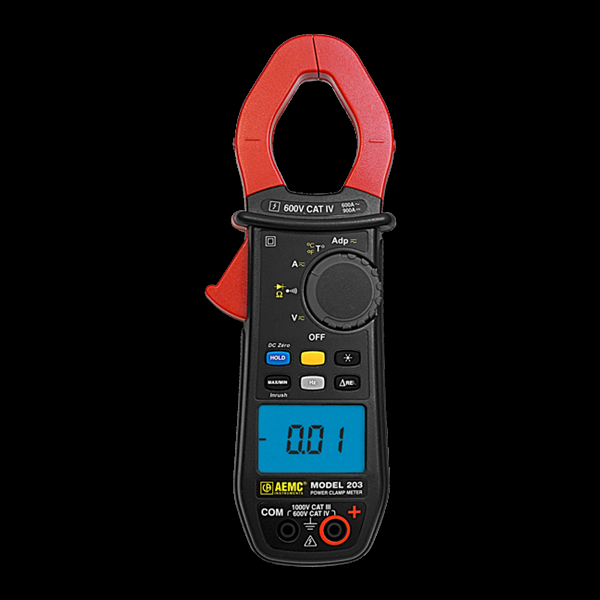

• Clamp-on Meter Model 203

  Compact Size, Professional Functionality
  Cat. #2139.12
  TRMS, 1000VAC/DC, 600AAC/900ADC
  Measures AC+DC voltage and current, frequency, continuity, resistance, and temperature (with supplied K thermocouple probe). Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. MIN/MAX function tracks high and low values. Safety rated at 600V CAT IV. IP54 rated to withstand dust and water spray.

•

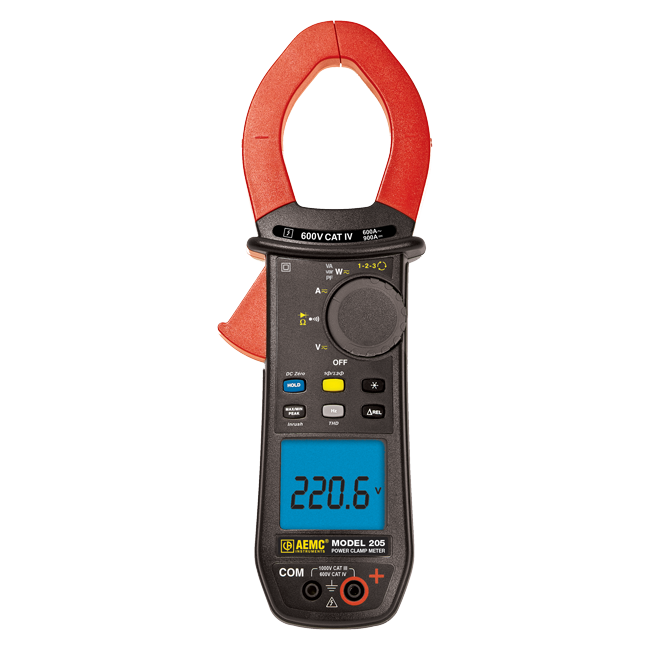

  Clamp-on Meter Model 205

  Compact Size, Professional Functionality
  Cat. #2139.40
  TRMS, 1000VAC/DC, 600AAC/900ADC
  Measures AC+DC voltage and current, frequency, continuity, resistance, power, Power Factor, phase rotation, and THD. Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. MIN/MAX function tracks high and low values. Also tracks peak+ and peak– values. Safety rated at 600V CAT IV. IP54 rated to withstand dust and water spray.

•

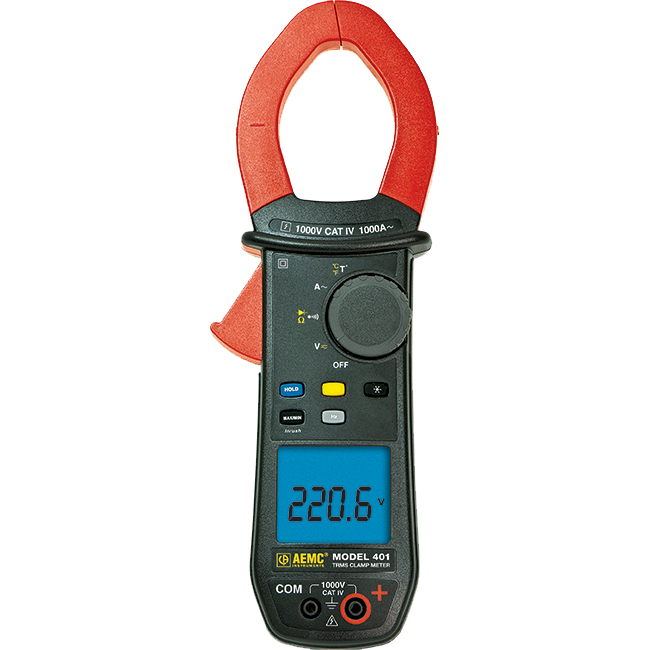

  Clamp-on Meter Model 401

  Mid-Size, Professional Functionality
  Cat. #2139.20
  TRMS, True InRush®, 1000VAC/DC, 1000AAC
  Measures voltage, current, frequency, resistance, continuity, True InRush®, and temperature. Performs diode checks. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

•

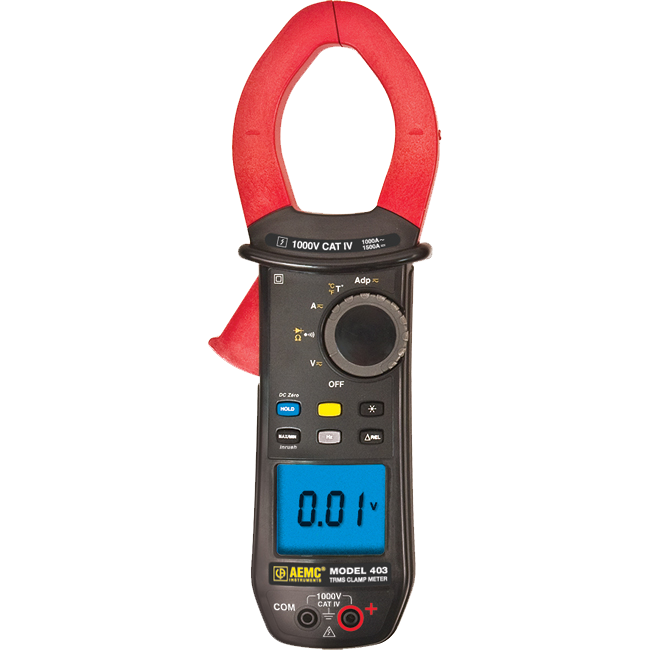

  Clamp-on Meter Model 403

  Mid-Size, Professional Functionality
  Cat. #2139.21
  TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC
  Measures voltage, current, frequency, resistance, frequency, continuity, True InRush®, and temperature. Performs diode checks. Adapter mode allows external sensor inputs to be displayed. Delta relative function allows new measurements to be compared to a reference value. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

•

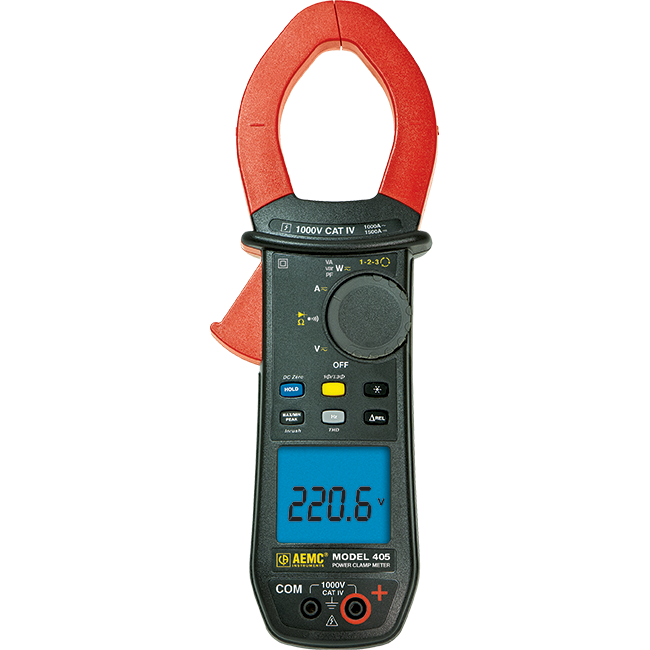

  Clamp-on Meter Model 405

  Mid-Size, Professional Functionality
  Cat. #2139.50
  TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC
  Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and phase rotation. Performs diode checks. Delta relative function allows new measurements to be compared to a reference value. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

•

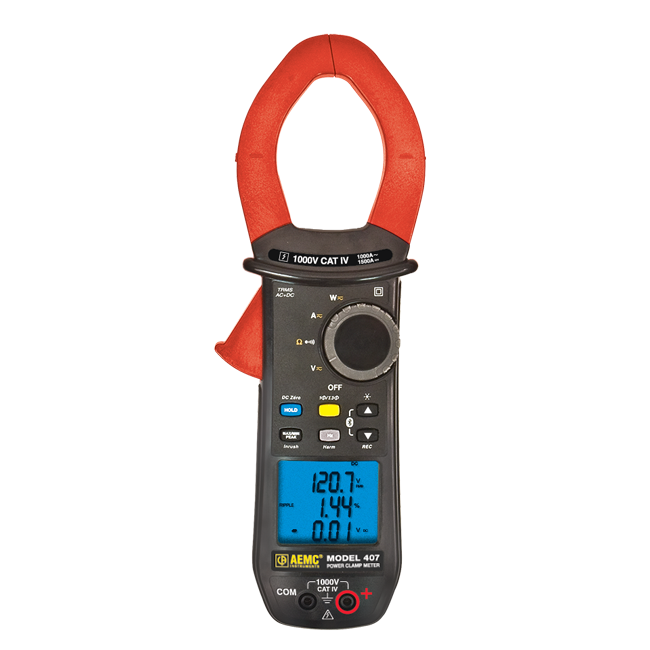

  Clamp-on Meter Model 407

  Mid-Size, Professional Functionality
  Cat. #2139.51
  TRMS, True InRush®, 1000VAC/DC, 1000AAC /1500ADC, Data Recording
  Measures AC, DC and AC+DC voltage, current, and power. Also measures frequency, resistance, continuity, True InRush®, and harmonics. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.

•

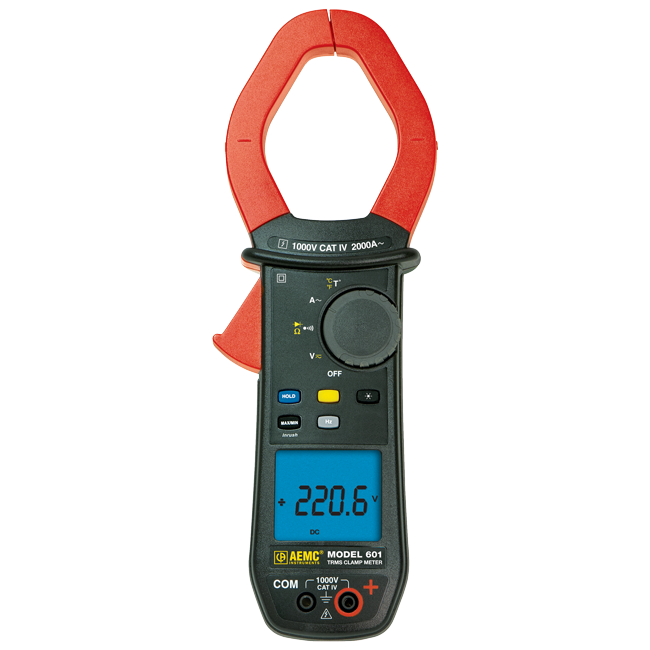

  Clamp-on Meter Model 601

  Large Size, Professional Functionality
  Cat. #2139.30
  TRMS, True InRush®, 1000VAC/DC, 2000AAC
  Measures voltage, current, frequency, resistance, continuity, True InRush®, and temperature. Performs diode checks. Performs data recording. Safety rated at 1000V CAT IV. IP54 rated to withstand dust and water spray.
