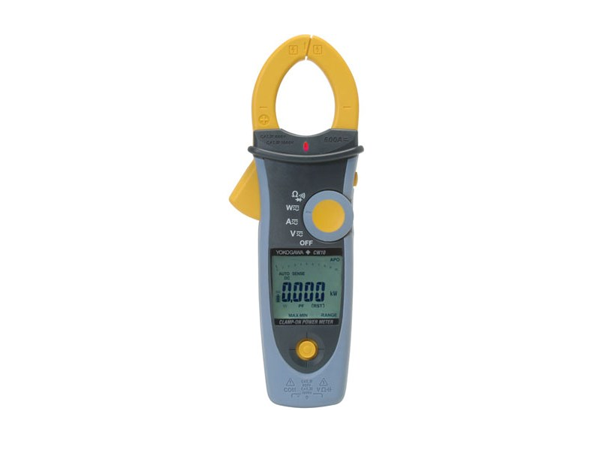

Ampe kìm đo công suất điện năng Yokogawa CW10

Ampe kìm đo công suất điện năng Yokogawa CW10

Ampe kìm đo công suất điện năng Yokogawa CW10

• AC / DC Power up to 600 kW, AC / DC Voltage max. 1000 V, AC / DC Current max. 600 A
• True RMS for AC .
• Harmonics 1st to 25th order
• Power fluctuation using the ACA Inrush and Peak hold functions.
• Frequency, Resistance, Continuity, Diode check, Power factor.
• Up to 9999 counts, approx. 37mm max. diameter of measurable conductor (the jaw opens approx. 45mm max.)
• CATIV 600V and CATIII 1000V compliant for safety.
• Backlight on the display area turns on and a white LED automatically illuminates the front of jaw when clamping.
• Non-contact Voltage Detection (Red LED lights up on detection).
• Easy Operation with the Navigator key.
• Low Pass Filter, Phase Detection, AC / DC Auto Sense.
