Ampe kìm đo dòng điện rò BENNING CM 9-1, CM 9-2

Mã sản phẩm: |
Thương hiệu:
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)

Ampe kìm đo dòng điện rò BENNING CM 9-1, CM 9-2

Thông tin sản phẩm

Ampe kìm đo dòng điện rò BENNING CM 9-1, CM 9-2

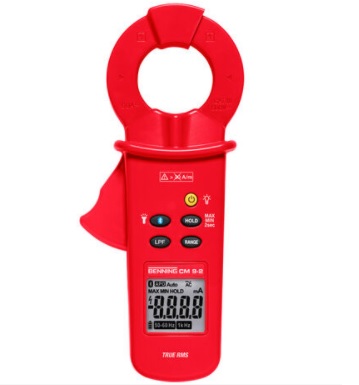

BENNING CM 9-1 and CM 9-2

Error-related leakage currents are caused by weak insulation or insulation damages. The BENNING CM 9-1/ CM 9-2 allows quick and precise localization of all error types. By means of preventive measurements, possible damages due to uncontrolled leakage currents can be avoided in advance.

Common features:

  • measurement of leakage currents and differential currents in electrical systems (VDE 0100/0105), devices (VDE 0701-0702) and machines (EN 60204-1/ VDE 0113-1)
  • DIN EN 61557-13 defines requirements for “current clamps for measuring leakage currents in electrical installations”, e. g. protection against external magnetic fields: class 2, magnetic field ≤ 30 A/m; frequency range: min. 40 Hz to 3rd harmonic of the mains frequency (150 Hz), recommended use: railway (as of 15 Hz), industry (up to 1 kHz)
  • DIN EN 61557-16 (requirements for appliance testers) defines filters with fg = 1 kHz for measuring protective conductor currents IPE in electrical and medical electrical devices
  • precise due to TRUE RMS measuring method
  • reliable and easy detection of insulation faults (e.g. defective cables, loose terminals, contamination, moisture)
  • measurement without switch-off during normal operation of the system/ device
  • ideal for preventive maintenance and fault localization (protection against damages and personal injury, blackouts etc.)
  • precise and reproducible measuring results up to 60 A

BENNING CM 9-1 with multimeter functions:

  • universally applicable for current measurements (60 A), voltage measurements (600 V), resistance measurements (600 kΩ) and continuity tests
  • Low-pass filter (40 Hz - 70 Hz) for rejection of high frequency interference signals
  • memory of measured value (HOLD) and peak value storage
  • incl. carrying case, measuring leads and batteries

BENNING CM 9-2 with Bluetooth® function and App:

  • Bluetooth® Low Energy 4.0 interface
  • IOS and Android app for viewing, storing and sharing measured values via smartphone/tablet
  • Low-pass filter (50 Hz - 60 Hz) for rejection of high frequency interference signals
  • memory of measured value (HOLD) and maximum/minimum value (MAX/MIN)
  • incl. carrying case and batteries
