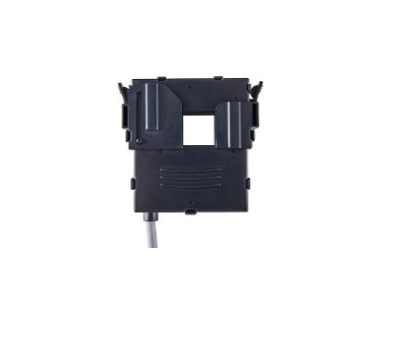

Ampe kìm đo dòng một chiều DCT-17 Multi

Mã sản phẩm: DCT-17 |
Thương hiệu: Multi
Giá gốc:

Giá khuyến mại: Liên hệ ( Đã có VAT )

Tiết kiệm: (0%)
Ampe kìm đo dòng một chiều
Model: DCT-17
Hãng: Multi
Thông tin sản phẩm
Rated Primary Current DC60A
Applicable Current ±1A~±60A
Max. Capable Current 75A
CT Inside Diameter φ17mm
Output Voltage ±2.0V F.S
Accuracy ±0.5% F.S
Power Supply +5V±5%(Unipolar)
Power Consumption Approx. 15mA
Capable CT Open/Close Approx. 30 times
Output Part Lead Wire: Approx. 1500mm(with Connector:PHR-5)
Wiring Method Red:+5V Black:COM White:Output Brown:Ref Green:No Connection
Rated Voltage Less than DC500V for low voltage circuit of coated wires
Withstanding Voltage AC2000V/1 minute (between output terminal and outer case)
Insulation Resistance More than 100MΩ by 500V insulation tester (between output terminal and outer case)
Operation Temperature -10~60℃, less than 85%RH w/o condensation
Dimension 78×70.5×37.8mm
Weight Approx. 190g
Standard Compliant with RoHS directive
