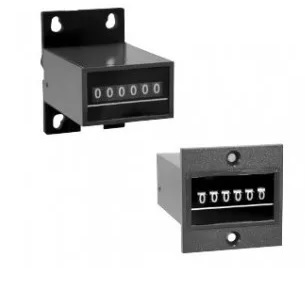

Bộ đếm Trumeter 48
Specification
Figures: 6 figures, white on black, 0.17’’ [4.3mm] high
Reset: None
Speed: 1,000 counts/minute AC, (min. 30ms - on, 30ms - off)
1,200 counts/minute DC, (min. 25ms - on, 25ms - off)
Power:
24VAC ~ 4 watts
115VAC ~ 3.5 watts
230VAC ~ 5 watts
12/24VDC ~ 2 watts
Mounting: Panel or base
Terminations: (2) #22 AWG 105°C wire leads, 12" [305mm] long
Operating Life: Beyond 10 million counts
Temp. Range: -15°F to +140°F [-26°C to +60°C]
Approvals: UL Recognized, CE Compliant, ROHS
Weight: 3.5 oz. [99g]
