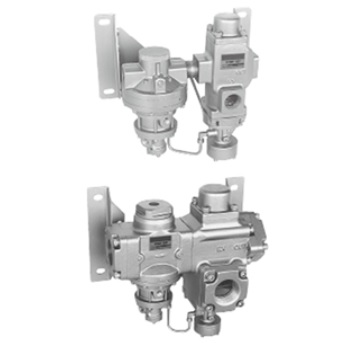

Bộ điều áp AZBIL HS-404Y2, HS-412Y2, HS-414Y2, HS-420Y2

Bộ điều áp AZBIL HS-404Y2, HS-412Y2, HS-414Y2, HS-420Y2

Bộ điều áp AZBIL HS-404Y2, HS-412Y2, HS-414Y2, HS-420Y2

MODEL NUMBER	HS-404Y2	HS-412Y2	HS-414Y2	HS-420Y2
PIPE SIZE	Rc 1/2	Rc1 1/4	Rc1 1/2	Rc2
EXHAUST PORT CONNECTION	Pipe connection is not available	Rc1 1/2		Rc2
LEAD PORT ・ PILOT PORT	Rc 1/4
FLUID	Filtered Compressed Air
MAXIMUM INLET PRESSURE	1.0MPa
AMBIENT TEMPERATURE	5 ~ 60˚C
ADJUSTING PRESSURE RANGE	0.1 ~ 0.8MPa
ALLOWABLE BACK PRESSURE	1.0MPa
CONSTANT FOR CHARGING TIME	1250	100
MASS (kg)	3.5	13

* Dimension of constant for charging time:
